Demystifying EFI PXE Network Boot: A Comprehensive Guide to Modern Network Deployment

EFI PXE Network boot represents a cornerstone of modern IT infrastructure management, enabling organizations to deploy operating systems, run diagnostics, and manage clients efficiently across a network without requiring local boot media. This powerful technology, an evolution of the traditional Preboot Execution Environment (PXE) designed for the Unified Extensible Firmware Interface (UEFI), addresses many limitations of legacy BIOS-based network booting. Understanding what is EFI PXE Network is paramount for IT professionals seeking to streamline large-scale deployments, automate system provisioning, and ensure robust security practices. By leveraging the advanced capabilities of UEFI firmware, EFI PXE offers enhanced security features like Secure Boot, support for larger disk partitions (GPT), and a more flexible boot process, fundamentally transforming how network-based booting is approached in today’s heterogeneous computing environments. This article delves deep into the mechanics, advantages, and practical considerations of implementing an EFI PXE network, providing a comprehensive resource for optimizing your network deployment strategies.

The Evolution: From BIOS PXE to EFI PXE Network

The journey from traditional BIOS PXE to the more advanced EFI PXE Network boot system marks a significant technological leap in how computers initiate their operating systems over a network. Historically, the Preboot Execution Environment (PXE) has been a robust method for network booting, allowing client machines to retrieve a boot image from a server without local storage. This traditional PXE, deeply tied to the Basic Input/Output System (BIOS), relied on a 16-bit real-mode environment, which imposed several limitations, including memory constraints, slower boot times, and a restricted ability to interface with modern hardware and security features. While effective for its time, the BIOS architecture, with its Master Boot Record (MBR) and legacy interrupt services, eventually became a bottleneck for the increasingly complex demands of modern computing.

The advent of the Unified Extensible Firmware Interface (UEFI) revolutionized the firmware landscape, introducing a programmable, 32-bit or 64-bit environment that far surpasses BIOS capabilities. UEFI brought native support for larger disk partitions through the GUID Partition Table (GPT), faster boot processes, and perhaps most importantly, a robust framework for Secure Boot. This security feature ensures that only trusted software—signed with cryptographic keys—can load during the boot process, significantly mitigating the risk of rootkits and other malicious boot-time attacks. Consequently, the traditional PXE model needed to evolve to fully leverage these UEFI advantages. EFI PXE Network boot is precisely this evolution, designed to operate seamlessly within the UEFI environment. Instead of relying on BIOS-specific calls, EFI PXE utilizes UEFI’s richer set of services, allowing for more sophisticated network interactions and the loading of UEFI-native bootloaders. This shift has not only improved performance and security but also opened up possibilities for more advanced system management and deployment scenarios, making it an indispensable tool for contemporary IT infrastructures.

How EFI PXE Network Boot Works: A Detailed Breakdown

Understanding the intricate mechanisms behind an EFI PXE Network boot is crucial for anyone involved in system deployment and network administration. Unlike its BIOS counterpart, UEFI PXE boot leverages the advanced features of the Unified Extensible Firmware Interface, providing a more secure and efficient method for initiating systems over a network. The process begins when a client machine, configured to boot from the network, powers on. Its UEFI firmware initializes the network interface card (NIC) and sends out a DHCPDISCOVER broadcast packet. This request is picked up by a DHCP server, which is specifically configured to handle PXE boot requests. The DHCP server doesn’t just assign an IP address; it also provides critical PXE-specific information. For UEFI clients, this typically involves DHCP Option 60 (PXEClient), Option 67 (Boot filename), and potentially Option 66 (TFTP server name).

Upon receiving the DHCP offer, the client uses the provided TFTP server address and boot filename to request the initial Network Boot Program (NBP). In the context of an EFI PXE network, this NBP is a UEFI-compatible bootloader, often named something like bootx64.efi for 64-bit systems or bootia32.efi for 32-bit systems. The TFTP server delivers this small bootloader, which is then executed directly by the client’s UEFI firmware. This UEFI NBP is far more capable than its BIOS counterpart, operating in a native 64-bit (or 32-bit) environment, allowing it to access more memory and leverage UEFI services. Once loaded, the UEFI NBP takes over, often fetching additional boot files, such as a Windows PE image or a Linux kernel and initramfs, from the TFTP server or a more robust HTTP/HTTPS server for larger files. These subsequent files enable the client to either begin an operating system installation, run diagnostic tools, or load a full operating system environment over the network. The integration of Secure Boot adds another layer of complexity and security: if enabled, the UEFI firmware will verify the digital signature of the NBP and subsequent boot components against trusted keys stored in the firmware. If the signatures do not match, the boot process will be halted, preventing unauthorized or malicious software from loading. This end-to-end secure chain of trust is a significant advantage of UEFI PXE boot, ensuring the integrity of the boot path from the moment the system powers on. The careful configuration of DHCP, TFTP, and the boot files themselves is paramount for a successful and secure EFI PXE network deployment.

Advantages and Key Benefits of Implementing EFI PXE Network Boot

Implementing EFI PXE Network boot solutions offers a compelling array of advantages for organizations looking to modernize their IT operations, significantly streamlining processes that were once cumbersome and time-consuming. One of the primary benefits is centralized operating system deployment and management. With UEFI PXE boot, IT administrators can provision new machines or reimage existing ones from a central server, eliminating the need for physical boot media like USB drives or DVDs. This is particularly advantageous in large enterprises or educational institutions where hundreds or even thousands of machines might need to be deployed or updated simultaneously. The efficiency gains are substantial, drastically reducing manual intervention and potential human error.

Furthermore, EFI PXE network environments greatly enhance scalability and speed. Modern networks can deliver boot images and installation files much faster than traditional physical media, accelerating deployment cycles. The UEFI firmware’s native 64-bit environment and support for GPT partitions mean that the boot process itself can be quicker and more robust, especially when dealing with large hard drives or complex operating system images. Another significant advantage is enhanced security, primarily due to the integration of Secure Boot. As discussed, Secure Boot ensures that only cryptographically signed and trusted bootloaders and operating system components are loaded, effectively preventing malware like rootkits from hijacking the boot process. This critical security layer is a cornerstone of modern cybersecurity practices, protecting systems from the moment they power on, a capability largely absent in legacy BIOS PXE.

EFI PXE boot also facilitates advanced diagnostic and recovery operations. Technicians can boot problematic machines into a network-based diagnostic environment without installing an OS or even if the local storage is corrupted. This allows for powerful troubleshooting, data recovery, and system repair from a centralized console, minimizing downtime and maximizing productivity. Beyond operating system installation, EFI PXE network is invaluable for disk imaging and bare-metal provisioning. Companies can maintain golden images of their systems and deploy them rapidly to new hardware, ensuring consistency and compliance across their infrastructure. This capability is vital for rapid disaster recovery, quick setup of development environments, and consistent application deployment. In essence, the strategic adoption of EFI PXE network transforms IT management from a reactive, labor-intensive process into a proactive, automated, and secure system, delivering tangible benefits across the entire lifecycle of computing assets.

Configuring an EFI PXE Network Environment: Best Practices and Challenges

Setting up an EFI PXE Network environment, while incredibly powerful, involves careful configuration and an understanding of specific technical nuances. The journey typically begins with the DHCP server configuration. For UEFI PXE boot, it’s not enough to simply assign an IP address; the DHCP server must be configured with specific options to direct UEFI clients to the appropriate bootloader. Key options include Option 60 (identifying the client as ‘PXEClient’), Option 66 (the IP address or hostname of the TFTP server), and crucially, Option 67 (the name of the UEFI bootloader file, typically bootx64.efi for 64-bit systems). A common challenge here is managing environments with both BIOS and UEFI clients; the DHCP server might need to use advanced configurations, such as class-based policies or next-server and filename directives within conditional logic, to serve the correct bootloader to each client type. Misconfiguration of these options is a frequent cause of failed PXE boots.

Next, the TFTP server setup is critical. The TFTP server must be accessible from the client machines and contain the correct UEFI bootloaders and any subsequent configuration files. For EFI PXE network to function, the bootloader (e.g., bootx64.efi) must be placed in a directory structure that the client’s UEFI firmware expects. This often means placing it in \EFI\boot\ relative to the TFTP root. The integrity of these files is paramount; corrupt or incorrect bootloaders will halt the process. Beyond the initial NBP, larger files like operating system images are often served via HTTP or SMB for better performance, requiring an additional web or file server configuration.

Secure Boot presents both a challenge and an opportunity within an EFI PXE network. While it significantly enhances security, it also means that all boot components, including the PXE bootloader and any subsequent operating system kernels, must be cryptographically signed by a trusted authority. If your deployment environment uses custom bootloaders or non-signed operating systems, Secure Boot might need to be temporarily disabled in the client’s UEFI settings, which can be a security risk. Best practice dictates signing your custom boot components or ensuring your OS images are Secure Boot compatible. Network infrastructure compatibility is another vital aspect; firewalls, VLANs, and routers must be configured to allow DHCP and TFTP traffic between clients and servers. Multicast options might also be relevant for large-scale deployments, adding another layer of networking complexity.

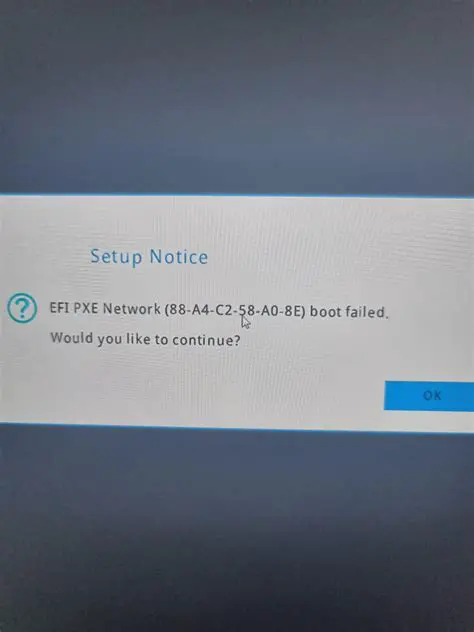

Finally, driver compatibility can be an overlooked challenge. While UEFI is designed to be more versatile, specific hardware, especially older or niche network cards, might require updated UEFI network drivers to function correctly during the PXE boot phase. Troubleshooting an EFI PXE network often involves checking DHCP logs, TFTP server logs, and carefully observing client boot messages for clues. Adopting a structured approach to configuration, meticulous logging, and thorough testing across different hardware models are best practices that will ensure a robust and reliable EFI PXE deployment environment. Overcoming these challenges ensures that organizations can fully harness the power and efficiency of modern network-based system management.

The Future of Network Booting: EFI PXE and Beyond

As technology continues its relentless march forward, the EFI PXE Network boot system is poised to remain a pivotal component in modern IT infrastructure, continually evolving to meet new demands for speed, security, and scalability. The foundational shift from BIOS to UEFI has not only modernized network booting but has also laid the groundwork for even more sophisticated deployment and management scenarios. One significant area of future development revolves around deeper integration with cloud-native environments and containerization technologies. Imagine scenarios where machines can PXE boot directly into a highly customized, containerized environment, quickly spinning up resources as needed without traditional OS installation, further blurring the lines between physical and virtual infrastructure. This would allow for even more agile development, testing, and deployment workflows, significantly reducing the overhead associated with managing diverse physical and virtual machines.

Another critical aspect of the future lies in the continuous enhancement of security features. While Secure Boot is a significant step forward, ongoing efforts aim to bolster the entire boot chain against increasingly sophisticated threats. This could involve more advanced cryptographic verification methods, hardware-level root-of-trust implementations, and even AI-driven anomaly detection during the early boot stages. As supply chain attacks become more prevalent, ensuring the integrity of every component loaded during an EFI PXE network boot will be paramount. Furthermore, the push towards zero-touch provisioning and infrastructure as code (IaC) will see EFI PXE become an even more automated process. Tools and platforms will likely emerge that allow administrators to define their entire network boot and OS deployment process through code, enabling consistent, repeatable, and error-free provisioning at an unprecedented scale. This move towards full automation will free up IT resources from repetitive tasks, allowing them to focus on more strategic initiatives.

Improvements in network protocols and hardware will also contribute to the evolution of UEFI PXE boot. Faster network speeds (e.g., 25GbE, 100GbE) and more intelligent network interface cards (NICs) with integrated offload capabilities will reduce boot times and enhance the efficiency of transferring large installation images. The adoption of new transport protocols beyond TFTP for the initial NBP stage, potentially leveraging HTTP/S more extensively from the very first boot request, could further accelerate the process and improve security. Finally, the growing complexity of hybrid environments—where local data centers interact seamlessly with public and private clouds—will necessitate EFI PXE solutions that can intelligently adapt to different network topologies and security policies. The future of the EFI PXE network is not just about booting an OS; it’s about creating a dynamic, secure, and highly automated foundation for the next generation of computing infrastructure, empowering organizations to be more agile, resilient, and secure in an ever-changing technological landscape.

Conclusion

The EFI PXE Network boot system stands as a critical and highly efficient technology in the landscape of modern IT infrastructure. We’ve explored what is EFI PXE Network, delving into its evolution from traditional BIOS PXE to its current, more secure, and versatile form driven by UEFI firmware. Its ability to centralize operating system deployment, facilitate rapid disk imaging, and provide robust diagnostic capabilities positions it as an indispensable tool for organizations seeking efficiency and scalability. The integration of Secure Boot significantly elevates security, ensuring the integrity of the boot process from the ground up, a vital feature in today’s threat-laden environment. While configuring an EFI PXE network requires meticulous attention to detail, particularly concerning DHCP and TFTP server settings, the long-term benefits in terms of automation, speed, and reduced manual overhead are profound. As we look to the future, the continued evolution of UEFI PXE boot promises even deeper integration with cloud environments, enhanced security measures, and greater automation, solidifying its role as a cornerstone of agile and resilient IT operations. Embracing and mastering EFI PXE Network is not just about staying current; it’s about strategically positioning your infrastructure for the demands of tomorrow’s computing challenges.
