Unveiling the EFI Engine System: A Comprehensive Guide

EFI engine system, or Electronic Fuel Injection, is a sophisticated method of delivering fuel to an internal combustion engine, replacing the older carburetor systems. This technology has become the standard in modern vehicles, offering significant improvements in fuel efficiency, performance, and emissions control. This article delves into the intricacies of the EFI engine system, providing a detailed understanding of its components, operational principles, advantages, and troubleshooting.

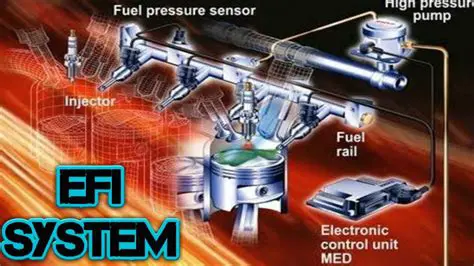

The Core Components of an EFI Engine System

The EFI engine system is comprised of several key components that work in harmony to ensure the engine receives the precise amount of fuel needed for optimal performance. Understanding these components is crucial for diagnosing and maintaining the system effectively. Let’s break down the main parts:

Fuel Tank and Fuel Pump: The fuel tank stores the gasoline, and the fuel pump, usually an electric pump submerged within the tank, draws fuel and delivers it under pressure to the fuel injectors. The fuel pump’s pressure is regulated to maintain the proper fuel delivery rate required by the engine. High-pressure fuel lines transport the fuel from the pump to the fuel rail.
Fuel Injectors: These are electrically controlled valves that spray fuel directly into the intake manifold or the combustion chamber. The Engine Control Unit (ECU) controls the timing and duration of the fuel injector pulses, determining the amount of fuel delivered. The precision of the fuel injectors is critical for both engine performance and fuel economy.
Fuel Rail: This is a metal tube that distributes pressurized fuel to the fuel injectors. The fuel rail maintains consistent fuel pressure. A pressure regulator on the fuel rail ensures that the fuel pressure remains constant, regardless of engine load.
ECU (Engine Control Unit): The ECU is the brain of the EFI system. It receives data from various sensors and, based on pre-programmed maps, calculates the optimal fuel injection parameters. It also controls ignition timing and other engine functions. The ECU is the heart of the system, coordinating all the other components to achieve optimal performance.
Sensors: These devices monitor various engine parameters and send information to the ECU. Important sensors include:
- Mass Air Flow (MAF) Sensor: Measures the amount of air entering the engine.
- Throttle Position Sensor (TPS): Detects the throttle plate’s position, indicating the driver’s acceleration demand.
- Crankshaft Position Sensor (CKP): Monitors the position and speed of the crankshaft, essential for timing fuel injection and ignition.
- Camshaft Position Sensor (CMP): Determines the position of the camshaft, synchronizing fuel injection with the engine’s valve events.
- Oxygen Sensors (O2): Measure the oxygen content in the exhaust gases, providing feedback to the ECU for adjusting the air-fuel mixture.
- Coolant Temperature Sensor (CTS): Monitors the engine coolant temperature to optimize fuel delivery during warm-up and operation.
- Manifold Absolute Pressure (MAP) Sensor: Measures the pressure within the intake manifold, indicating engine load.
Air Intake System: This includes the air filter, intake manifold, and throttle body. The air filter cleans incoming air, and the throttle body controls the airflow into the engine. The intake manifold distributes the air to the cylinders.
Exhaust System: This system includes the exhaust manifold, catalytic converter, and muffler. The exhaust system manages the exhaust gases from the engine, reducing emissions. The catalytic converter is a crucial component in reducing harmful pollutants.

How an EFI Engine System Operates: The Process Explained

The operation of an EFI engine system is a complex interplay of sensors, the ECU, and various actuators working in perfect sync to deliver the appropriate amount of fuel to the engine. The following is a step-by-step description of the process:

Air Intake: As the engine’s pistons move down, they create a vacuum, drawing air into the cylinders through the intake manifold. The air first passes through the air filter, which removes any dirt or debris.
Sensor Input: Sensors continuously monitor various engine parameters and send data to the ECU. These parameters include air intake volume, throttle position, engine temperature, crankshaft position, and exhaust oxygen content.
ECU Calculation: Based on the sensor inputs, the ECU calculates the optimal amount of fuel needed for the current operating conditions. It uses pre-programmed maps and algorithms to determine the correct fuel injection pulse width.
Fuel Injection: The ECU sends a signal to the fuel injectors, which open and spray a precise amount of fuel into the intake manifold or directly into the combustion chamber. The duration of the injection (pulse width) determines the fuel quantity.
Air-Fuel Mixture Formation: The fuel mixes with the incoming air, creating a combustible air-fuel mixture. The mixture’s ratio is carefully controlled by the ECU to ensure efficient combustion and reduce emissions.
Combustion: The air-fuel mixture enters the cylinders. The spark plugs ignite the mixture, causing combustion. The expanding gases from the combustion push the pistons down, generating power.
Exhaust: The exhaust gases, products of combustion, exit through the exhaust valves, pass through the exhaust manifold, and flow through the catalytic converter and muffler. The catalytic converter reduces harmful pollutants before releasing them into the atmosphere.
Feedback Loop: Oxygen sensors in the exhaust provide feedback to the ECU about the exhaust gas composition. The ECU uses this feedback to adjust the fuel injection to maintain the optimal air-fuel ratio, correcting any deviations to ensure optimal performance and emissions control. This feedback loop is continuous, optimizing performance in real-time.

Advantages of EFI Engine Systems: Why They’re Superior

EFI engine systems offer numerous advantages over older carburetor-based systems. These advantages translate into a better driving experience, improved fuel economy, and a cleaner environment. Some key benefits include:

Improved Fuel Efficiency: EFI systems precisely control fuel delivery, ensuring the engine receives only the fuel it needs. This leads to better fuel economy compared to carburetors, which often run slightly rich.
Enhanced Performance: The ECU can fine-tune fuel injection and ignition timing to optimize engine power and torque across a wide range of operating conditions. This results in smoother acceleration and better overall performance.
Reduced Emissions: Precise fuel control helps minimize harmful exhaust emissions. Catalytic converters in EFI systems work more effectively when the air-fuel ratio is accurately managed, reducing pollution.
Improved Cold Starting: EFI systems are much easier to start in cold weather because the ECU can enrich the fuel mixture during startup to compensate for the colder air.
Better Driveability: EFI engines typically offer smoother idling, quicker throttle response, and more consistent performance compared to carburetor systems. The ECU constantly adjusts fuel delivery based on real-time engine conditions.
Increased Reliability: EFI systems require less maintenance than carburetors. There are fewer moving parts and fewer adjustments needed, which leads to increased reliability and longevity.
Altitude Compensation: EFI systems automatically adjust fuel delivery based on atmospheric pressure, which helps maintain consistent performance at different altitudes.

Troubleshooting Common EFI Engine System Issues

Troubleshooting EFI engine system problems can sometimes be complex, but a systematic approach can help diagnose and resolve issues. Here are some common problems and how to approach them:

Hard Starting: If the engine is hard to start, several issues could be the cause. Check the fuel pump for proper operation. Ensure the fuel pressure is within the specified range. Examine the spark plugs for fouling or wear. Inspect the crankshaft position sensor and the camshaft position sensor, which can affect the ECU’s ability to trigger fuel injection and spark at the correct time. A faulty sensor can prevent the engine from starting.
Rough Idling: A rough idle can be caused by various factors, including vacuum leaks, faulty sensors (e.g., MAF, TPS, O2), and clogged fuel injectors. Check for vacuum leaks by inspecting the intake manifold and hoses. Clean or replace the fuel injectors. Inspect the MAF and TPS sensors for proper function. A faulty oxygen sensor can also disrupt the air-fuel mixture, contributing to rough idling.
Poor Fuel Economy: If fuel economy has declined, consider issues such as a malfunctioning oxygen sensor, a clogged air filter, or leaking fuel injectors. Replace or clean the oxygen sensor. Replace the air filter. Test fuel injectors for leaks. Also, consider issues with the fuel pressure regulator, which might allow too much fuel to be injected.
Engine Misfires: Engine misfires can result from issues such as faulty spark plugs, ignition coil problems, or fuel injector issues. Check the spark plugs and ignition coils. Inspect and clean or replace fuel injectors. The CKP sensor can also cause misfires if it is providing erratic or inaccurate signals.
Check Engine Light On: A lit check engine light indicates a problem that has been detected by the ECU. Use an OBD-II scanner to read the trouble codes and identify the specific issue. The scanner can reveal sensor malfunctions, system failures, and other problems. Follow diagnostic steps based on the code provided.
Stalling: Stalling can be caused by various issues, including fuel pump failure, a faulty crankshaft position sensor, or a clogged fuel filter. Test the fuel pump and check the fuel pressure. Inspect the CKP sensor. Replace the fuel filter. Vacuum leaks are also a common culprit.
Running Rich/Lean: If the engine is running rich (too much fuel) or lean (not enough fuel), the oxygen sensor, MAF sensor, or fuel injectors might be malfunctioning. Check the oxygen sensor readings, examine the MAF sensor, and inspect the fuel injectors. A rich mixture can cause black smoke, while a lean mixture can cause rough running and potential engine damage.

Maintaining Your EFI Engine System: Best Practices

Proper maintenance is essential to ensure the longevity and reliable operation of your EFI engine system. Here are some best practices:

Regular Oil Changes: Change your engine oil and filter at the recommended intervals. Fresh oil keeps the engine clean and lubricated, reducing friction and wear.
Fuel Filter Replacement: Replace the fuel filter according to the manufacturer’s recommendations. A clean fuel filter helps ensure optimal fuel flow to the injectors.
Spark Plug Replacement: Replace spark plugs as recommended. Worn spark plugs can cause misfires and reduce engine performance.
Air Filter Replacement: Replace the air filter regularly to prevent dirt and debris from entering the engine. A clean air filter optimizes airflow and performance.
Fuel System Cleaning: Use fuel system cleaners periodically to remove deposits from fuel injectors and other components. This can help maintain fuel efficiency and performance.
Sensor Inspection: Regularly inspect sensors like the MAF, O2, and TPS. Clean or replace them if necessary to ensure they are functioning properly. A well-maintained sensor system ensures accurate readings and consistent engine performance.
Professional Diagnostics: Have a qualified technician perform regular diagnostic checks on your EFI system. These checks can catch potential problems early, preventing more significant issues down the line.
Use Quality Fuel: Use high-quality gasoline from reputable fuel stations. Poor fuel quality can lead to deposits and damage in the fuel system.

The Future of EFI and Engine Technology

EFI engine systems have paved the way for more advanced engine technologies. The integration of EFI with other innovations, such as direct injection and turbocharging, has enabled engines to become even more efficient, powerful, and environmentally friendly. Hybrid and electric vehicles are further evolving engine technology, pushing the boundaries of fuel efficiency and reducing emissions. Expect ongoing advancements in engine control systems, with increasingly sophisticated ECUs and sensors, to further optimize engine performance and emissions in the years ahead.

In conclusion, the EFI engine system is a cornerstone of modern automotive technology. Understanding its operation, advantages, and maintenance requirements can help you keep your vehicle running smoothly and efficiently for years to come.
