Vectors and Their Components

Oct 13, 2025 by miodeya.com 85 views

===========================================================

Introduction

In this article, we will explore the concept of vectors and how to find the angle between two vectors. Vectors are mathematical objects that have both magnitude (length) and direction. They are commonly used in physics, engineering, and mathematics to describe quantities such as displacement, velocity, and acceleration.

Vectors and Their Components

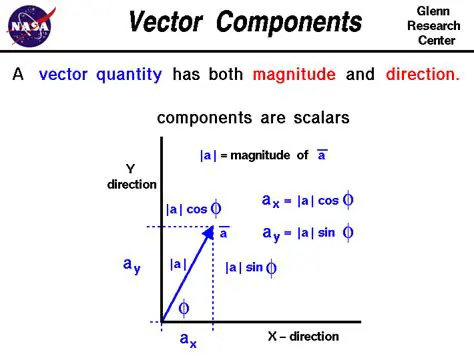

A vector can be represented as an ordered pair of numbers, known as its components. For example, the vector ${\mathbf{v} = (a, b)}$ has components ${a}$ and ${b}$ . The magnitude of a vector is calculated using the formula ${\|\mathbf{v}\| = \sqrt{a^2 + b^2}}$ , and the direction of a vector is given by the angle it makes with the positive x-axis.

The Problem

Two boats leave the dock at the same time. The first boat travels in the direction of the vector ${\mathbf{v_1} = (3, 1)}$ , and the second travels in the direction of the vector ${\mathbf{v_2} = (-1, 5)}$ . We need to find the angle between these two vectors.

Finding the Angle Between Two Vectors

To find the angle between two vectors, we can use the dot product formula. The dot product of two vectors ${\mathbf{u}}$ and ${\mathbf{v}}$ is given by ${\mathbf{u} \cdot \mathbf{v} = u_1v_1 + u_2v_2}$ . The angle between two vectors can be found using the formula ${\cos \theta = \frac{\mathbf{u} \cdot \mathbf{v}}{\|\mathbf{u}\| \|\mathbf{v}\|}}$ , where ${\theta}$ is the angle between the two vectors.

Calculating the Dot Product

First, we need to calculate the dot product of the two vectors. The dot product of ${\mathbf{v_1}}$ and ${\mathbf{v_2}}$ is given by:

${\mathbf{v_1} \cdot \mathbf{v_2} = (3)(-1) + (1)(5) = -3 + 5 = 2}$

Calculating the Magnitudes

Next, we need to calculate the magnitudes of the two vectors. The magnitude of ${\mathbf{v_1}}$ is given by:

${\|\mathbf{v_1}\| = \sqrt{(3)^2 + (1)^2} = \sqrt{9 + 1} = \sqrt{10}}$

The magnitude of ${\mathbf{v_2}}$ is given by:

${\|\mathbf{v_2}\| = \sqrt{(-1)^2 + (5)^2} = \sqrt{1 + 25} = \sqrt{26}}$

Finding the Angle

Now that we have the dot product and the magnitudes, we can find the angle between the two vectors. Plugging in the values, we get:

${\cos \theta = \frac{2}{\sqrt{10} \sqrt{26}} = \frac{2}{\sqrt{260}} = \frac{2}{2\sqrt{65}} = \frac{1}{\sqrt{65}}}$

Simplifying the Expression

To simplify the expression, we can rationalize the denominator by multiplying both the numerator and the denominator by ${\sqrt{65}}$ :

${\cos \theta = \frac{1}{\sqrt{65}} \cdot \frac{\sqrt{65}}{\sqrt{65}} = \frac{\sqrt{65}}{65}}$

Finding the Angle

Finally, we can find the angle by taking the inverse cosine of both sides:

${\theta = \cos^{-1} \left(\frac{\sqrt{65}}{65}\right)}$

Conclusion

In this article, we have found the angle between two vectors ${\mathbf{v_1} = (3, 1)}$ and ${\mathbf{v_2} = (-1, 5)}$ . We used the dot product formula and the magnitudes of the vectors to find the angle. The angle is given by ${\theta = \cos^{-1} \left(\frac{\sqrt{65}}{65}\right)}$ .

Example Use Cases

The concept of finding the angle between two vectors has many practical applications in physics, engineering, and mathematics. For example, it can be used to find the angle between two forces acting on an object, or to determine the angle between two velocities.

Code Implementation

Here is an example of how to implement the code in Python to find the angle between two vectors:

import math
def find_angle(v1, v2):
# Calculate the dot product
dot_product = v1[0]*v2[0] + v1[1]*v2[1]
# Calculate the magnitudes
magnitude_v1 = math.sqrt(v1[0]**2 + v1[1]**2)
magnitude_v2 = math.sqrt(v2[0]**2 + v2[1]**2)

# Calculate the angle
angle = math.acos(dot_product / (magnitude_v1 * magnitude_v2))

return angle

v1 = (3, 1)
v2 = (-1, 5)
angle = find_angle(v1, v2)
print("The angle between the two vectors is:", math.degrees(angle), "degrees")

This code defines a function find_angle that takes two vectors as input and returns the angle between them. The function calculates the dot product, the magnitudes, and the angle using the formulas above. The code then defines the vectors v1 and v2, finds the angle using the find_angle function, and prints the angle in degrees.

===========================================================

Introduction

In our previous article, we explored the concept of vectors and how to find the angle between two vectors. We used the dot product formula and the magnitudes of the vectors to find the angle. In this article, we will answer some frequently asked questions about finding the angle between two vectors.

Q&A

Q: What is the dot product of two vectors?

A: The dot product of two vectors ${\mathbf{u}}$ and ${\mathbf{v}}$ is given by ${\mathbf{u} \cdot \mathbf{v} = u_1v_1 + u_2v_2}$ .

Q: How do I calculate the magnitude of a vector?

A: The magnitude of a vector ${\mathbf{v}}$ is given by ${\|\mathbf{v}\| = \sqrt{v_1^2 + v_2^2}}$ .

Q: What is the formula for finding the angle between two vectors?

A: The formula for finding the angle between two vectors is ${\cos \theta = \frac{\mathbf{u} \cdot \mathbf{v}}{\|\mathbf{u}\| \|\mathbf{v}\|}}$ .

Q: How do I find the angle between two vectors in degrees?

A: To find the angle in degrees, you can use the formula ${\theta = \cos^{-1} \left(\frac{\mathbf{u} \cdot \mathbf{v}}{\|\mathbf{u}\| \|\mathbf{v}\|}\right)}$ and then convert the result to degrees using the formula ${\theta_{\text{degrees}} = \theta \times \frac{180}{\pi}}$ .

Q: Can I use the dot product formula to find the angle between two vectors in 3D space?

A: Yes, you can use the dot product formula to find the angle between two vectors in 3D space. The formula is ${\mathbf{u} \cdot \mathbf{v} = u_1v_1 + u_2v_2 + u_3v_3}$ , where ${\mathbf{u} = (u_1, u_2, u_3)}$ and ${\mathbf{v} = (v_1, v_2, v_3)}$ .

Q: How do I calculate the dot product of two vectors in 3D space?

A: To calculate the dot product of two vectors in 3D space, you can use the formula ${\mathbf{u} \cdot \mathbf{v} = u_1v_1 + u_2v_2 + u_3v_3}$ .

Q: Can I use the dot product formula to find the angle between two vectors in 2D space?

A: Yes, you can use the dot product formula to find the angle between two vectors in 2D space. The formula is ${\mathbf{u} \cdot \mathbf{v} = u_1v_1 + u_2v_2}$ , where ${\mathbf{u} = (u_1, u_2)}$ and ${\mathbf{v} = (v_1, v_2)}$ .

Q: How do I find the angle between two vectors in 2D space?

A: To find the angle between two vectors in 2D space, you can use the formula ${\cos \theta = \frac{\mathbf{u} \cdot \mathbf{v}}{\|\mathbf{u}\| \|\mathbf{v}\|}}$ and then take the inverse cosine of both sides to find the angle.

Q: Can I use a calculator to find the angle between two vectors?

A: Yes, you can use a calculator to find the angle between two vectors. Most calculators have a built-in inverse cosine function that you can use to find the angle.

Example Use Cases

Code Implementation

Here is an example of how to implement the code in Python to find the angle between two vectors:

import math
def find_angle(v1, v2):
# Calculate the dot product
dot_product = v1[0]*v2[0] + v1[1]*v2[1]
# Calculate the magnitudes
magnitude_v1 = math.sqrt(v1[0]**2 + v1[1]**2)
magnitude_v2 = math.sqrt(v2[0]**2 + v2[1]**2)

# Calculate the angle
angle = math.acos(dot_product / (magnitude_v1 * magnitude_v2))

return angle

v1 = (3, 1)
v2 = (-1, 5)
angle = find_angle(v1, v2)
print("The angle between the two vectors is:", math.degrees(angle), "degrees")

Conclusion

In this article, we have answered some frequently asked questions about finding the angle between two vectors. We have covered topics such as the dot product formula, the magnitude of a vector, and how to find the angle between two vectors in 2D and 3D space. We have also provided an example of how to implement the code in Python to find the angle between two vectors.
