$Refraction and Critical Angle$

Introduction

When light passes from one medium to another, it is refracted, or bent. The amount of bending that occurs depends on the refractive indices of the two media and the angle of incidence. In this article, we will explore the concept of critical angle, which is the angle of incidence above which total internal reflection occurs. We will apply this concept to a glass window with a uniform layer of ice on it, and determine the critical angle for a ray trying to pass from glass to ice.

Refraction and Critical Angle

Refraction is the bending of light as it passes from one medium to another. The amount of bending that occurs depends on the refractive indices of the two media and the angle of incidence. The refractive index of a medium is a measure of how much it bends light. The higher the refractive index, the more light is bent.

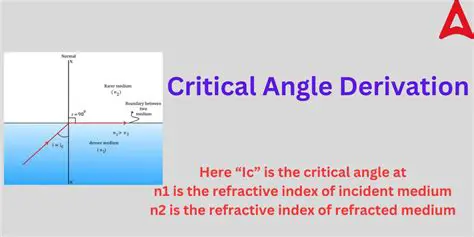

The critical angle is the angle of incidence above which total internal reflection occurs. When light hits a surface at an angle greater than the critical angle, it is completely reflected back into the first medium, with no light passing into the second medium.

Snell's Law

Snell's Law describes how light bends as it passes from one medium to another. It states that the ratio of the sines of the angles of incidence and refraction is equal to the ratio of the refractive indices of the two media.

n1 sin(θ1) = n2 sin(θ2)

where n1 and n2 are the refractive indices of the two media, and θ1 and θ2 are the angles of incidence and refraction, respectively.

Critical Angle for Glass to Ice

We are given that the refractive index of glass is n1 = 1.52, and the refractive index of ice is n2 = 1.31. We want to find the critical angle for a ray trying to pass from glass to ice.

Using Snell's Law, we can write:

1.52 sin(θ1) = 1.31 sin(θ2)

We want to find the critical angle, which is the angle of incidence above which total internal reflection occurs. This means that θ2 = 90°, since the light is completely reflected back into the glass.

Substituting θ2 = 90° into the equation above, we get:

1.52 sin(θ1) = 1.31 sin(90°)

Since sin(90°) = 1, we can simplify the equation to:

1.52 sin(θ1) = 1.31

Dividing both sides by 1.52, we get:

sin(θ1) = 1.31 / 1.52

sin(θ1) = 0.8632

Taking the inverse sine of both sides, we get:

θ1 = arcsin(0.8632)

θ1 ≈ 59.45°

Therefore, the critical angle for a ray trying to pass from glass to ice is approximately 59.45°.

Critical Angle for Ice to Air

We are also given that the refractive index of water is n1 = 1.33, and the refractive index of air is n2 = 1.00. We want to find the critical angle for a ray trying to pass from ice to air.

Using Snell's Law, we can write:

1.33 sin(θ1) = 1.00 sin(θ2)

Substituting θ2 = 90° into the equation above, we get:

1.33 sin(θ1) = 1.00 sin(90°)

Since sin(90°) = 1, we can simplify the equation to:

1.33 sin(θ1) = 1.00

Dividing both sides by 1.33, we get:

sin(θ1) = 1.00 / 1.33

sin(θ1) = 0.7519

Taking the inverse sine of both sides, we get:

θ1 = arcsin(0.7519)

θ1 ≈ 48.75°

Therefore, the critical angle for a ray trying to pass from ice to air is approximately 48.75°.

Conclusion

In this article, we have explored the concept of critical angle, which is the angle of incidence above which total internal reflection occurs. We have applied this concept to a glass window with a uniform layer of ice on it, and determined the critical angle for a ray trying to pass from glass to ice. We have also determined the critical angle for a ray trying to pass from ice to air. The critical angle for a ray trying to pass from glass to ice is approximately 59.45°, and the critical angle for a ray trying to pass from ice to air is approximately 48.75°.

References

[1] Hecht, E. (2002). Optics. Addison-Wesley.
[2] Halliday, D., Resnick, R., & Walker, J. (2005). Fundamentals of Physics. John Wiley & Sons.
[3] Serway, R. A., & Jewett, J. W. (2004). Physics for Scientists and Engineers. Brooks/Cole.

Discussion

The critical angle is an important concept in optics, and it has many practical applications. For example, it is used in the design of optical fibers, which are used to transmit data over long distances. It is also used in the design of telescopes and microscopes, which rely on total internal reflection to form images.

In conclusion, the critical angle is a fundamental concept in optics, and it has many practical applications. By understanding the critical angle, we can design more efficient optical systems and improve our understanding of the behavior of light.

Introduction

In our previous article, we explored the concept of critical angle, which is the angle of incidence above which total internal reflection occurs. We applied this concept to a glass window with a uniform layer of ice on it, and determined the critical angle for a ray trying to pass from glass to ice. We also determined the critical angle for a ray trying to pass from ice to air.

In this article, we will answer some frequently asked questions about the critical angle and its applications.

Q&A

Q: What is the critical angle for a ray trying to pass from glass to ice?

A: The critical angle for a ray trying to pass from glass to ice is approximately 59.45°.

Q: What is the critical angle for a ray trying to pass from ice to air?

A: The critical angle for a ray trying to pass from ice to air is approximately 48.75°.

Q: What is the difference between the critical angle for glass to ice and ice to air?

A: The critical angle for glass to ice is approximately 10.7° higher than the critical angle for ice to air.

Q: Why is the critical angle important in optics?

A: The critical angle is important in optics because it determines the maximum angle of incidence at which light can pass from one medium to another without being totally reflected back into the first medium.

Q: What are some practical applications of the critical angle?

A: The critical angle has many practical applications in optics, including the design of optical fibers, telescopes, and microscopes.

Q: Can the critical angle be affected by the presence of impurities or defects in the medium?

A: Yes, the critical angle can be affected by the presence of impurities or defects in the medium. Impurities or defects can cause the refractive index of the medium to vary, which can affect the critical angle.

Q: How can the critical angle be measured?

A: The critical angle can be measured using a variety of techniques, including the total internal reflection method and the critical angle method.

Q: What is the relationship between the critical angle and the refractive indices of the two media?

A: The critical angle is related to the refractive indices of the two media by Snell's Law, which states that the ratio of the sines of the angles of incidence and refraction is equal to the ratio of the refractive indices of the two media.

Q: Can the critical angle be used to determine the refractive index of a medium?

A: Yes, the critical angle can be used to determine the refractive index of a medium. By measuring the critical angle and using Snell's Law, the refractive index of the medium can be calculated.

Conclusion

In this article, we have answered some frequently asked questions about the critical angle and its applications. The critical angle is an important concept in optics, and it has many practical applications in the design of optical systems. By understanding the critical angle, we can design more efficient optical systems and improve our understanding of the behavior of light.

References

[1] Hecht, E. (2002). Optics. Addison-Wesley.
[2] Halliday, D., Resnick, R., & Walker, J. (2005). Fundamentals of Physics. John Wiley & Sons.
[3] Serway, R. A., & Jewett, J. W. (2004). Physics for Scientists and Engineers. Brooks/Cole.

Discussion

The critical angle is a fundamental concept in optics, and it has many practical applications. By understanding the critical angle, we can design more efficient optical systems and improve our understanding of the behavior of light.
