IPsec VPN ASA Configuration: A Practical Guide and Example

Oct 27, 2025 by miodeya.com 142 views

IPsec VPN ASA Configuration: A Practical Guide and Example

IPsec VPN ASA configuration is a cornerstone of secure network connectivity, allowing businesses to establish encrypted tunnels between remote sites and headquarters. This guide provides a detailed look at configuring IPsec VPNs on Cisco Adaptive Security Appliances (ASAs), offering a practical example to follow. Understanding IPsec VPN configuration is essential for network administrators seeking to protect sensitive data transmitted over public networks. We will delve into the critical components, step-by-step configuration, and troubleshooting techniques to establish robust and reliable VPN connections using the ASA firewall.

Understanding IPsec VPN and its Importance

Before diving into the IPsec VPN ASA configuration specifics, it’s crucial to grasp the fundamentals. IPsec (Internet Protocol Security) is a suite of protocols designed to secure IP communications by authenticating and encrypting each IP packet of a communication session. It provides confidentiality, integrity, and authentication, making it an ideal solution for protecting data in transit. The ASA firewall, a leading security appliance, offers robust IPsec VPN capabilities, making it a popular choice for site-to-site and remote-access VPN deployments. IPsec VPNs are vital for several reasons. Primarily, they provide a secure channel for data transmission, ensuring that sensitive information remains confidential and protected from eavesdropping. They authenticate the parties involved in the communication, verifying the identity of the sender and receiver. This prevents unauthorized access and data tampering. Furthermore, IPsec VPNs encapsulate data within an encrypted tunnel, making it difficult for attackers to intercept and decipher the information, providing end-to-end security for your network infrastructure. It’s also important because they allow geographically dispersed offices to operate as if they were on the same network. This facilitates seamless access to resources, applications, and services, enhancing productivity and collaboration. The benefits extend beyond security and network integration. IPsec VPNs can reduce costs by allowing the use of the public internet as the underlying transport medium, eliminating the need for expensive dedicated leased lines. Finally, because of the robust security they provide, IPsec VPNs are crucial for complying with regulatory requirements related to data protection and privacy, such as GDPR and HIPAA.

To begin configuring an IPsec VPN ASA, consider the following aspects. Key features of IPsec include: Authentication, which uses digital signatures or pre-shared keys to verify the identity of the communicating parties. Encryption, which employs algorithms like AES or 3DES to protect data confidentiality. Integrity, that ensures data isn’t altered during transit through the use of hashing algorithms such as SHA-1 or MD5. Furthermore, there are two primary modes of operation, Tunnel mode, which encrypts the entire IP packet, including the header, and is typically used for site-to-site VPNs, and Transport mode, which encrypts only the payload of the IP packet, leaving the header untouched, usually employed for host-to-host communications. This provides a robust security layer that encompasses all aspects of data exchange.

Pre-Configuration Steps and Requirements for IPsec VPN ASA

Before commencing the IPsec VPN ASA configuration, certain prerequisites must be met to ensure a successful deployment. First, you need to have a Cisco ASA firewall. Ensure your ASA has the appropriate license for VPN functionality. Check the hardware and software compatibility, ensuring the ASA’s operating system (ASA OS) supports the features required for your VPN configuration. You’ll need to determine the network topology, including the IP addresses, subnet masks, and network segments on both the local and remote sides of the VPN tunnel. Secondly, define the security policies, including the encryption algorithms (AES, 3DES), hashing algorithms (SHA-1, MD5), and Diffie-Hellman groups to be used for key exchange. Next, gather all of the necessary information. Collect the public IP addresses of the ASA firewalls at both the local and remote sites. You will also need to decide upon a pre-shared key (PSK) or set up a Certificate Authority (CA) if using digital certificates. Plan for these steps carefully. In addition, make sure that: The ASA is properly configured with basic network settings such as IP addresses, gateway settings, and DNS server settings. You will need to check your network connectivity, to ensure there’s a stable internet connection available. Verify your network, make sure that the necessary ports are open on the firewalls, such as UDP port 500 for IKE and UDP port 4500 for NAT traversal. Confirm that there are no conflicting network configurations, such as overlapping IP address ranges or existing VPN tunnels. Then, create a detailed implementation plan that includes all configuration steps, potential troubleshooting scenarios, and rollback procedures in case of issues. Furthermore, have a detailed backup plan of your existing firewall configuration before making any changes. This plan will ensure that you have the right starting point, which is crucial for a smooth and effective configuration. Careful planning and preparation is the foundation of a successful IPsec VPN deployment using the Cisco ASA firewall.

Step-by-Step IPsec VPN ASA Configuration Example

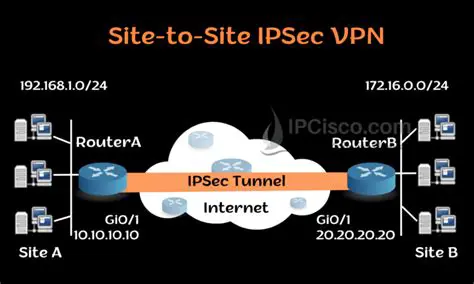

Here’s a practical IPsec VPN ASA configuration example using a site-to-site VPN scenario with a pre-shared key. Follow these detailed instructions:

Phase 1: IKE (Internet Key Exchange) Configuration:

This phase establishes the secure channel for negotiating the IPsec security associations (SAs). Access the ASA’s command-line interface (CLI) or Adaptive Security Device Manager (ASDM). Configure the IKE policy, which includes defining the encryption algorithm, hashing algorithm, Diffie-Hellman group, and lifetime. For instance: crypto ikev1 policy 1 encryption aes hash sha authentication pre-share group 2 lifetime 86400. You then specify the pre-shared key. For example, crypto ikev1 pre-shared-key your_secret_key address <remote_public_ip>. Replace <remote_public_ip> with the public IP address of the remote ASA. Next, enable IKE on the interface that connects to the internet, such as interface GigabitEthernet0/0 crypto ikev1 enable. Finally, verify IKE configuration with commands such as show crypto ikev1 policy and show crypto ikev1 sa. This will establish the initial secure tunnel.

Phase 2: IPsec Configuration:

This phase defines the parameters for securing the data traffic. Create a transform set, which specifies the encryption and hashing algorithms for data protection. For instance: crypto ipsec transform-set ESP-AES-SHA esp-aes esp-sha-hmac mode tunnel. Define the crypto map, that associates the transform set with the remote network. For example: crypto map outside_map 10 ipsec-isakmp set peer <remote_public_ip> set transform-set ESP-AES-SHA match address 101. Create an access list to define the traffic to be encrypted. For example: access-list 101 permit ip <local_network> <local_netmask> <remote_network> <remote_netmask>. Apply the crypto map to the outside interface: interface GigabitEthernet0/0 crypto map outside_map. Finally, verify the IPsec configuration using commands like show crypto ipsec sa and show crypto map. Remember that: You need to repeat these steps on the remote ASA, adjusting IP addresses and networks to match its configuration. Proper Phase 2 configuration ensures that the actual data traffic is encrypted and securely transmitted between the sites. Thorough testing and verification are essential after completing this phase to ensure data flow and security.

Troubleshooting Common IPsec VPN ASA Issues

Troubleshooting IPsec VPN ASA configuration can be challenging. However, by understanding common issues and their resolutions, you can quickly address connectivity problems. Here are some common issues and how to resolve them: If the VPN tunnel doesn’t come up, check IKE phase 1 issues. Verify that the IKE policy parameters (encryption, hash, authentication, group, lifetime) match on both ends. Incorrect parameters often cause the VPN to fail. Inspect the pre-shared key, ensuring it’s identical on both firewalls and that you are using the correct case. Check the logs on both the local and remote ASAs using show log or the ASDM event logs, to identify IKE phase 1 negotiation errors. If the tunnel is up, but no traffic passes, it’s typically an IPsec phase 2 issue. Ensure that: The transform sets match on both sides and define the same encryption and hashing algorithms. The crypto map configuration matches, and the access lists correctly define the traffic to be encrypted. Check the IP address of the peer device, and verify if it’s reachable. Use ping to test basic connectivity. Also, verify that there are no routing issues. Ensure that the ASA has correct routes to the remote network. If NAT is involved, confirm NAT-T (NAT Traversal) is enabled and working correctly. If you encounter NAT issues, you can verify your configuration with the show crypto ipsec sa command.

Other helpful tools during troubleshooting are: Examine the access lists using show access-list, making sure that they permit the traffic you wish to encrypt. Use the debug crypto ikev1 and debug crypto ipsec commands, but use them sparingly, as they can generate a lot of output. Examine the output for errors or warnings, and check for any mismatch. Lastly, verify the configuration against the established best practices for IPsec VPN configuration on the ASA firewall to ensure that the settings comply with security standards.

Best Practices for IPsec VPN ASA Configuration

To ensure the security, stability, and optimal performance of your IPsec VPN ASA configuration, following best practices is critical. Regularly update your ASA firmware. Ensure that the ASA is running the latest stable version of the ASA OS to patch security vulnerabilities and get improved performance. Use strong encryption algorithms, such as AES, and robust hashing algorithms like SHA-256 for enhanced security. For pre-shared keys, use complex, long keys and change them periodically to prevent brute-force attacks. Implement proper key management and adhere to a regular key rotation policy. Ensure your pre-shared keys are stored securely. When possible, deploy digital certificates and utilize certificate-based authentication for stronger security and better key management. Additionally, limit the number of IPsec SAs to reduce resource consumption and potential attack surface. Configure split tunneling to avoid unnecessary traffic traversing the VPN. You should only encrypt traffic destined for remote networks. Implement security policies on both the local and remote firewalls. Utilize access control lists (ACLs) to limit access to sensitive resources and enforce security policies. Monitor your VPN connections for performance and uptime. Regularly check the VPN tunnel status and review the ASA logs for any errors or security threats. Establish a proactive monitoring system to promptly detect and address any issues. Document your configuration, including all the settings, IP addresses, and policies implemented, for ease of management and troubleshooting. This documentation is essential for maintaining and auditing your VPN setup. Implement a rollback plan, with backups of your configuration. When making changes, test them in a lab environment before deploying them to your production network. By implementing these practices, you can maximize the security, reliability, and effectiveness of your VPN connections, and this leads to a safer and more efficient network environment.

Conclusion: Securing Your Network with IPsec VPN ASA

IPsec VPN ASA configuration provides a robust and secure way to connect remote sites and users to your network. By understanding the core concepts, following the step-by-step configuration example, and adhering to best practices, you can establish reliable and secure VPN connections. This guide offers a comprehensive approach to configuring IPsec VPNs on Cisco ASAs, from initial planning to troubleshooting and optimization. Remember to carefully plan your configuration, paying attention to security policies, and regularly monitor your VPN connections to ensure optimal performance. Continuous monitoring and maintenance are crucial to maintain the integrity and security of your network. The correct implementation of an IPsec VPN ASA configuration provides a secure, efficient, and cost-effective solution for your network security requirements.
