IKEv2 VPN Configuration on Cisco ASA: A Step-by-Step Guide

Oct 27, 2025 by miodeya.com 114 views

IKEv2 VPN Configuration on Cisco ASA: A Step-by-Step Guide

Setting up a secure IKEv2 VPN configuration on Cisco ASA is crucial for enabling secure remote access to your network resources. This article provides a comprehensive, step-by-step guide to configure an IKEv2 VPN on a Cisco ASA firewall. We will cover all necessary configurations, from basic network setup to advanced security policies, making it easy for you to implement a secure and reliable VPN solution. Whether you’re new to ASA firewalls or an experienced network administrator, this guide will provide the knowledge and practical examples you need to successfully configure IKEv2 VPN connections. The focus will be on providing clear instructions and explanations so you can easily adapt the configurations to your specific network environment. This detailed guide ensures that you can establish a robust and secure connection for remote users, protecting your sensitive data and network infrastructure. So, let’s get started with this practical IKEv2 VPN configuration on Cisco ASA and secure your network access.

Understanding IKEv2 and its Benefits

Before diving into the IKEv2 VPN configuration on Cisco ASA, it’s important to understand what IKEv2 is and why it’s a preferred VPN protocol. IKEv2 (Internet Key Exchange version 2) is a VPN protocol that offers several advantages over older protocols like IPSec with IKEv1. It’s known for its robust security, efficient key management, and ease of configuration. IKEv2 utilizes the IPsec security protocol to encrypt and authenticate data packets, ensuring that your data is protected during transmission. Its key benefits include:

Enhanced Security: IKEv2 provides a higher level of security than IKEv1, offering better protection against various security threats.
Mobility and Stability: IKEv2 is designed to handle network changes gracefully. It can seamlessly re-establish a VPN connection if the user’s IP address changes or if the network connection is interrupted, making it ideal for mobile users. This ensures that users can stay connected even when they switch between different Wi-Fi networks or cellular data.
Simplicity and Efficiency: IKEv2 is generally easier to configure than IKEv1, and it often has better performance characteristics, leading to a smoother user experience. The protocol also streamlines the key exchange process, which reduces latency and improves overall performance. This is achieved by reducing the number of messages needed to establish a secure connection.
NAT Traversal: IKEv2 inherently supports Network Address Translation (NAT) traversal, making it easier to deploy VPNs in environments where NAT is used. This is a critical feature as it allows VPN clients to connect from behind NAT devices, which are commonly used in home and small business networks.

Choosing IKEv2 for your IKEv2 VPN configuration on Cisco ASA ensures a more secure and reliable remote access solution. By understanding these benefits, you can appreciate the value of implementing IKEv2 for your network security needs. These advantages make IKEv2 an excellent choice for securing remote access and protecting sensitive data transmitted over the internet.

Prerequisites for IKEv2 VPN Configuration on Cisco ASA

Before you begin the IKEv2 VPN configuration on Cisco ASA, ensure you have met the necessary prerequisites. This preparation will help to streamline the configuration process and prevent any common pitfalls. Here’s a checklist of what you’ll need:

Cisco ASA Firewall: You’ll need a Cisco ASA firewall that supports IKEv2. Most modern ASA models have this capability, but it’s best to verify that your specific model’s software version supports IKEv2. The ASA firewall acts as the VPN server, terminating the VPN connections from remote users.
ASA Software Version: Make sure your ASA is running a software version that supports IKEv2. You can check the software version using the command show version in the ASA’s command-line interface (CLI).
Network Connectivity: You must have proper network connectivity between the ASA firewall and the remote users. This includes ensuring that the ASA can reach the internet and that remote users can connect to the ASA’s public IP address. Firewall rules must be configured to allow VPN traffic.
Public IP Address: Your ASA firewall needs a public IP address (or a static NAT configured) to accept incoming VPN connections from remote users. This is the address that the remote users will connect to.
IP Addressing Scheme: You must define IP address pools for assigning IP addresses to remote VPN clients. These IP addresses should be within a private IP address range that does not overlap with your internal network.
Authentication Credentials: Decide on an authentication method (e.g., pre-shared key, digital certificates) and have the necessary credentials ready. Pre-shared keys are easier to configure, while digital certificates provide a higher level of security.
VPN Client Software: Remote users will need VPN client software installed on their devices. Cisco AnyConnect is a popular choice and supports IKEv2. Other VPN clients, like the built-in VPN clients of Windows, macOS, or iOS, can also be used if compatible with IKEv2.
Knowledge of Network Settings: You should know the settings of your local network and also the network of the remote users, including IP addresses, subnets, and DNS servers.
Basic CLI Skills: Familiarity with the Cisco ASA’s CLI is beneficial, as you will be using it to configure the VPN. Understand the basic commands for navigation and configuration.
Time: Allocate sufficient time to complete the configuration and testing. The entire process can take some time, depending on your experience and network complexity.

By ensuring these prerequisites are in place before you start the IKEv2 VPN configuration on Cisco ASA, you can significantly reduce the chances of encountering issues during the process.

Step-by-Step IKEv2 VPN Configuration on Cisco ASA

Now, let’s proceed with the detailed IKEv2 VPN configuration on Cisco ASA steps. This example assumes a basic network setup, and you should adjust the settings based on your specific requirements. We will cover the configuration using the CLI, which provides the most granular control.

Step 1: Configure the IP Addresses and Network Interfaces

First, configure the IP addresses and interfaces on your Cisco ASA firewall. This ensures that the firewall can communicate with the internet and your internal network. Access the ASA’s CLI, using SSH or console access.

configure terminal
interface GigabitEthernet0/0
 nameif outside
 security-level 0
 ip address <outside_ip_address> <subnet_mask>
 no shutdown
!
interface GigabitEthernet0/1
 nameif inside
 security-level 100
 ip address <inside_ip_address> <subnet_mask>
 no shutdown
!

Replace <outside_ip_address> and <subnet_mask> with your public IP address and subnet mask respectively for the outside interface. Replace <inside_ip_address> and <subnet_mask> with your inside network’s IP address and subnet mask. The nameif command assigns names to the interfaces for easy identification. The security-level defines the security level of the interface, with a higher number implying a higher security level.

Step 2: Configure IKEv2 Policy

Next, define an IKEv2 policy. This is a crucial step in the IKEv2 VPN configuration on Cisco ASA, as it specifies the encryption, hashing, and Diffie-Hellman group used for the IKE phase. The IKE phase establishes the security association for the VPN.

crypto ikev2 policy 10
 encryption aes-256
 integrity sha512
 group 14
 lifetime seconds 28800
!

In this example, we’re using AES-256 for encryption, SHA512 for integrity, and Diffie-Hellman group 14. The lifetime command specifies the lifetime of the security association in seconds. Customize these parameters according to your security requirements. You can create multiple policies if needed, but the ASA will typically use the policy with the lowest number first.

Step 3: Configure IKEv2 Proposal

The IKEv2 proposal defines the encryption, authentication, and Diffie-Hellman group used for the IPsec phase. This step is essential for establishing secure communication.

crypto ipsec ikev2 ipsec-proposal CUSTOM_PROPOSAL
 protocol esp encryption aes-256
 protocol esp integrity sha512
!

Here, we create an IPsec proposal named CUSTOM_PROPOSAL. The example uses AES-256 for encryption and SHA512 for integrity. This is a critical part of the IKEv2 VPN configuration on Cisco ASA, setting the security protocols for the data being transmitted.

Step 4: Configure the IKEv2 Profile

The IKEv2 profile links the IKEv2 policy to the IPsec proposal and defines authentication methods. This combines the previously configured policies and proposals into a single profile.

crypto ikev2 profile VPN_PROFILE
 match address outside 192.168.1.0 255.255.255.0  // Example of a permitted network
 authentication pre-shared-key <pre_shared_key>
  lifetime seconds 28800
  virtual-address pool VPN_POOL
  !

Replace <pre_shared_key> with a strong pre-shared key. The virtual-address pool defines the pool from which IP addresses will be assigned to remote VPN clients. This step ensures secure communication and authentication. It is essential in the IKEv2 VPN configuration on Cisco ASA.

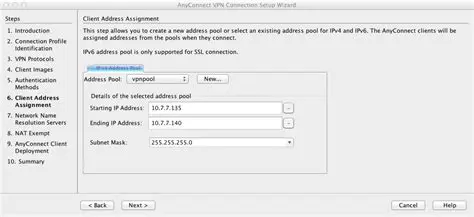

Step 5: Define an IP Address Pool

Define an IP address pool for the VPN clients to get IP addresses. This is critical for assigning internal network addresses to remote clients.

ip local pool VPN_POOL 10.10.10.1-10.10.10.254

This command defines a pool named VPN_POOL from which IP addresses in the range of 10.10.10.1 to 10.10.10.254 will be assigned to VPN clients. Ensure the pool does not overlap with existing internal networks.

Step 6: Configure the Tunnel Group

The tunnel group links all of the configurations together and defines the connection parameters.

tunnel-group <public_ip_address> type ipsec-ikev2
tunnel-group <public_ip_address> ipsec-profile VPN_PROFILE

Replace <public_ip_address> with the public IP address of your ASA firewall. The ipsec-profile command specifies the IKEv2 profile created earlier. This connects all of the security parameters to a specific IP address.

Step 7: Configure Access Control Lists (ACLs)

Define ACLs to permit the traffic that will be allowed to pass through the VPN. These access control lists control what traffic is permitted or denied through the firewall.

access-list outside_cryptomap extended permit ip any object-group INTERNAL_NET
object-group network INTERNAL_NET
 network-object 192.168.1.0 255.255.255.0
!

This example permits traffic from any source (any) to your internal network. Adjust the source and destination networks and IP addresses according to your needs. This is critical for security and also defines the type of traffic. It is essential to configure the proper traffic in your IKEv2 VPN configuration on Cisco ASA.

Step 8: Configure Crypto Map

Associate the IKEv2 profile with a crypto map that defines how the VPN connections will be handled. The crypto map specifies the security policies used to protect the traffic.

crypto map outside_map 10 match address outside_cryptomap
crypto map outside_map 10 set ikev2-profile VPN_PROFILE
crypto map outside_map interface outside

This command associates the IKEv2 profile VPN_PROFILE with the crypto map outside_map. The crypto map is applied to the outside interface. The crypto map defines the security parameters for the VPN connections, making it a critical step in the IKEv2 VPN configuration on Cisco ASA.

Step 9: Configure NAT Exemption

Configure NAT exemption to prevent the VPN traffic from being subjected to NAT translation. This is vital for the correct operation of the VPN, enabling remote clients to access resources in the internal network.

object network LOCAL_NETWORK
 subnet 192.168.1.0 255.255.255.0
object network REMOTE_USER_POOL
 subnet 10.10.10.0 255.255.255.0
nat (inside) 0 access-list NO_NAT_VPN
access-list NO_NAT_VPN extended permit ip object LOCAL_NETWORK object REMOTE_USER_POOL

These commands configure NAT exemption by creating object groups for the local network and the remote user IP address pool, and then defining an access-list that permits traffic between them without NAT. This is a very critical part in your IKEv2 VPN configuration on Cisco ASA. This prevents the ASA from translating the traffic, allowing the VPN clients to access resources using their assigned IP addresses.

Step 10: Enable the Configuration

After completing all the configurations, save the configurations on the ASA firewall to ensure that the settings are retained after a reboot. Review the configuration, and then save the changes.

write memory

This command saves the current configuration to the ASA’s startup configuration. Also, verify your configuration and ensure it is working correctly. These steps ensure that the configuration is both active and preserved.

Step 11: Testing the VPN Connection

After completing the configuration, test the VPN connection. Use a VPN client such as Cisco AnyConnect or the built-in client on your operating system to connect to the ASA firewall using its public IP address and the pre-shared key you configured. Verify that you can access internal network resources. If the VPN client fails to connect, review the configuration and troubleshoot any errors. Make sure that the configuration is working properly to establish secure remote access. This final step confirms the successful implementation of the IKEv2 VPN configuration on Cisco ASA.

Troubleshooting Common Issues

While configuring the IKEv2 VPN configuration on Cisco ASA, you might encounter some common issues. Here are some troubleshooting tips to address them effectively.

Connectivity Issues: If the VPN client cannot connect, verify that your firewall rules permit UDP traffic on ports 500 and 4500 (for IKE and NAT-T) from the outside interface to the ASA’s public IP address. Also, ensure your ASA can reach the Internet and that there are no routing issues.
Authentication Failures: Check the pre-shared key on both the ASA and the VPN client. They must match exactly. If using digital certificates, verify the certificate validity and that the certificate chain is correctly configured.
IP Address Assignment Problems: Ensure that the IP address pool defined in the ASA’s configuration is not overlapping with your internal network. Verify that the client is receiving an IP address from the correct pool, and check for any address conflicts.
Traffic Filtering: Double-check your access control lists (ACLs) to ensure they allow the required traffic to pass through the VPN tunnel. Verify that your ACLs permit traffic between the remote clients and the internal network resources.
Phase 1 and Phase 2 Errors: Use the show crypto ikev2 sa and show crypto ipsec sa commands to diagnose Phase 1 (IKE) and Phase 2 (IPsec) security associations. These commands display detailed information about the active VPN tunnels and the status of the security associations. Review the logs for any errors that may occur when establishing the tunnel.
NAT Issues: If you are using NAT, make sure you configure NAT exemption properly. Incorrect NAT configuration can prevent remote clients from accessing internal network resources. Review the NAT configuration and access lists associated with your VPN.
Log Analysis: Enable logging (using logging console informational) to identify issues during the connection attempts. The ASA logs provide valuable information about failed connections, authentication errors, and other issues. Check the ASA’s logs for error messages that indicate the source of the problem.
Certificate Errors: If you are using digital certificates, ensure that the certificate chain is correctly installed on the ASA and the client device. Verify that the certificates are valid and have not expired. Invalid or expired certificates will prevent the VPN from establishing a connection.
MTU Issues: Incorrect Maximum Transmission Unit (MTU) settings can cause fragmentation issues. You can use the ping command with the -D (Don’t Fragment) option to test the MTU size. Adjust the MTU settings on the ASA and the VPN clients to prevent fragmentation. This can enhance the VPN performance and avoid potential packet loss.

These troubleshooting steps will help you resolve the most common issues during your IKEv2 VPN configuration on Cisco ASA.

Best Practices for a Secure IKEv2 VPN Configuration

To ensure a secure IKEv2 VPN configuration on Cisco ASA, follow these best practices. These practices are designed to enhance the security of your VPN and protect your network.

Use Strong Encryption and Hashing Algorithms: Choose strong encryption algorithms (e.g., AES-256) and hashing algorithms (e.g., SHA-512) for the IKEv2 and IPsec security associations. This provides robust data protection.
Implement Strong Authentication: Avoid using weak authentication methods like pre-shared keys alone. Use strong, complex pre-shared keys or, preferably, digital certificates for authentication. Regular change the pre-shared keys.
Regularly Update the ASA Firmware: Keep your Cisco ASA firewall software up to date to patch security vulnerabilities and benefit from the latest security features and improvements. Updated firmware helps to protect against known exploits.
Monitor VPN Logs: Regularly monitor your ASA’s logs for any suspicious activity. The logs contain details about successful and failed connection attempts, which can help to detect and respond to potential security threats. Regularly review the VPN logs for unusual activity.
Use a Separate IP Address Pool: When assigning IP addresses to VPN clients, use a dedicated IP address pool that does not overlap with your internal network. This prevents IP address conflicts and simplifies network administration.
Limit VPN User Access: Configure access control lists (ACLs) to restrict VPN users to only access the necessary network resources. Limit the access to only what is needed, reducing the attack surface. This minimizes the potential impact of a security breach.
Implement Two-Factor Authentication (2FA): Enhance security by using two-factor authentication for VPN access. 2FA adds an extra layer of security and makes it harder for unauthorized users to gain access to your network.
Regularly Audit the Configuration: Regularly review your ASA configuration to ensure that it aligns with your security policies. Periodic audits help to maintain security over time.
Disable Unnecessary Services: Disable any services or protocols that are not required for the VPN to operate. Reduce the number of potential attack vectors by disabling unneeded services.
Secure the ASA Firewall: Harden the ASA firewall itself by using strong passwords for the administrator account and implementing other security best practices, such as disabling unnecessary services and ports. Secure the physical and logical access to the ASA.

By following these best practices, you can create a more secure IKEv2 VPN configuration on Cisco ASA, which will greatly enhance the security of your network and your sensitive data.

Conclusion

Configuring an IKEv2 VPN on Cisco ASA provides a robust and secure way to enable remote access to your network. This guide walked you through the step-by-step process of configuring IKEv2 on your ASA firewall, covering everything from network interface setup to the more intricate details of security policies and NAT configurations. By implementing the steps outlined in this article, you can establish a secure and reliable VPN connection. Remember to always prioritize security by using strong encryption methods, strong authentication, and adhering to best practices. Regularly review your configuration and security protocols to ensure that your VPN remains secure and protected against emerging threats. Implementing a secure IKEv2 VPN configuration on Cisco ASA is a crucial step towards safeguarding your network and ensuring that your remote users can access resources securely.
