Securing GRE over IPSec on Cisco ASA: A Comprehensive Guide

In the realm of network security, establishing secure and reliable communication channels is paramount. One common approach involves tunneling Generic Routing Encapsulation (GRE) traffic over Internet Protocol Security (IPSec) within a Cisco Adaptive Security Appliance (ASA) environment. This method allows for the transport of various protocols and multicast traffic across networks while ensuring confidentiality and integrity through encryption. This article provides a comprehensive guide on configuring and troubleshooting GRE over IPSec on a Cisco ASA, empowering network administrators to implement robust and secure network connections. Before diving into the technical aspects, understanding the foundational concepts is critical.

Understanding GRE and IPSec

Before configuring GRE over IPSec on Cisco ASA, it’s essential to understand the underlying technologies. GRE, or Generic Routing Encapsulation, is a tunneling protocol that allows you to encapsulate a wide variety of network layer protocols inside IP packets. This is particularly useful for transmitting non-IP traffic across an IP network or creating VPNs. However, GRE by itself offers no encryption, making it vulnerable to eavesdropping. This is where IPSec comes into play.

IPSec, or Internet Protocol Security, is a suite of protocols that provides secure IP communications by authenticating and encrypting each IP packet of a communication session. IPSec operates in two main modes: transport mode and tunnel mode. In transport mode, only the payload of the IP packet is encrypted, while in tunnel mode, the entire IP packet is encrypted and encapsulated within a new IP packet. When combined with GRE, IPSec typically operates in tunnel mode to protect the GRE traffic. The combination of GRE over IPSec on Cisco ASA offers a secure solution for transporting diverse network traffic across untrusted networks.

Benefits of Using GRE over IPSec

Implementing GRE over IPSec on Cisco ASA offers several key advantages:

Transport of Non-IP Traffic: GRE allows you to encapsulate protocols that are not natively supported by IP networks, such as AppleTalk or IPX. This is particularly useful for legacy applications or network environments that still rely on these protocols.
Multicast Support: GRE tunnels can carry multicast traffic, enabling applications like video conferencing and streaming to function correctly across networks.
VPN Creation: GRE tunnels, when secured with IPSec, provide a cost-effective way to create VPNs between geographically dispersed locations, allowing secure communication between sites.
Security: IPSec provides strong encryption and authentication, ensuring the confidentiality and integrity of the data transmitted over the GRE tunnel. This protects against eavesdropping and tampering.
Flexibility: Combining GRE and IPSec provides a flexible solution that can be adapted to various network environments and requirements. It allows for the secure transport of diverse traffic types across different network infrastructures.

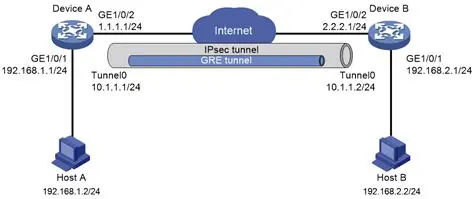

Configuring GRE over IPSec on Cisco ASA: Step-by-Step Guide

This section provides a step-by-step guide on configuring GRE over IPSec on Cisco ASA. The configuration involves several key steps, including defining access lists, configuring crypto maps, and creating tunnel interfaces. Below is a detailed breakdown of each step, assuming you have basic familiarity with the Cisco ASA command-line interface (CLI).

Step 1: Define Access Lists

Access lists are used to define the traffic that will be encrypted by IPSec. You need to create two access lists: one for the GRE tunnel traffic and another for the IPSec traffic itself. The GRE traffic access list specifies the traffic that will be encapsulated within the GRE tunnel, while the IPSec traffic access list specifies the traffic that will be encrypted by IPSec. Here’s an example:

access-list GRE_TRAFFIC extended permit ip 10.1.1.0 255.255.255.0 10.2.2.0 255.255.255.0
access-list IPSec_TRAFFIC extended permit ip host <ASA_Public_IP_1> host <ASA_Public_IP_2>

GRE_TRAFFIC: This access list defines the traffic that will be encapsulated within the GRE tunnel. In this example, it permits IP traffic between the 10.1.1.0/24 and 10.2.2.0/24 networks.
IPSec_TRAFFIC: This access list defines the traffic that will be encrypted by IPSec. It permits IP traffic between the public IP addresses of the two ASA firewalls.

Make sure to replace the example IP addresses with your actual network and firewall IP addresses.

Step 2: Configure Crypto Maps

Crypto maps are used to define the IPSec parameters, such as the encryption and authentication algorithms, the key exchange method, and the peer IP address. You need to create a crypto map and associate it with the IPSec traffic access list. Here’s an example:

crypto map CRYPTO_MAP 10 match address IPSec_TRAFFIC
crypto map CRYPTO_MAP 10 set pfs group2
crypto map CRYPTO_MAP 10 set transform-set ESP-AES-256-SHA
crypto map CRYPTO_MAP 10 set peer <ASA_Public_IP_2>
crypto map CRYPTO_MAP 10 set ikev1 transform-set ESP-AES-256-SHA
crypto map CRYPTO_MAP interface outside

CRYPTO_MAP: This is the name of the crypto map. You can choose any name you like.
10: This is the sequence number of the crypto map entry. You can use any number you like, but it’s recommended to start with 10 and increment by 10 for each subsequent entry.
match address IPSec_TRAFFIC: This associates the crypto map with the IPSec traffic access list.
set pfs group2: This enables Perfect Forward Secrecy (PFS) using Diffie-Hellman group 2. PFS ensures that the compromise of one key will not compromise past or future keys.
set transform-set ESP-AES-256-SHA: This specifies the encryption and authentication algorithms to use. In this example, it uses AES-256 encryption and SHA hashing.
set peer <ASA_Public_IP_2>: This specifies the public IP address of the peer ASA firewall.
interface outside: This applies the crypto map to the outside interface of the ASA firewall.

Step 3: Configure ISAKMP (IKE) Policy

ISAKMP (Internet Security Association and Key Management Protocol), also known as IKE (Internet Key Exchange), is used to establish the secure connection between the ASA firewalls. You need to configure an ISAKMP policy that specifies the encryption, authentication, and hashing algorithms to use. Here’s an example:

isakmp enable outside
isakmp policy 10 authentication pre-share
isakmp policy 10 encryption aes-256
isakmp policy 10 hash sha
isakmp policy 10 group 2
isakmp policy 10 lifetime 86400
preshared-key address <ASA_Public_IP_2> key <YOUR_SHARED_KEY>

isakmp enable outside: This enables ISAKMP on the outside interface of the ASA firewall.
isakmp policy 10 ...: This configures ISAKMP policy number 10.
authentication pre-share: This specifies that pre-shared keys will be used for authentication.
encryption aes-256: This specifies that AES-256 encryption will be used.
hash sha: This specifies that SHA hashing will be used.
group 2: This specifies Diffie-Hellman group 2.
lifetime 86400: This specifies the lifetime of the ISAKMP security association in seconds (24 hours).
preshared-key address <ASA_Public_IP_2> key <YOUR_SHARED_KEY>: This configures the pre-shared key to use for authentication. Replace <YOUR_SHARED_KEY> with a strong, randomly generated key. Ensure this key matches the one configured on the peer ASA.

Step 4: Create Tunnel Interface

A tunnel interface is a virtual interface that is used to route traffic through the GRE tunnel. You need to create a tunnel interface and configure its IP address, tunnel source, and tunnel destination. Here’s an example:

interface Tunnel0
 ip address 10.10.10.1 255.255.255.252
 tunnel source <ASA_Public_IP_1>
 tunnel destination <ASA_Public_IP_2>
 tunnel mode gre ip

interface Tunnel0: This creates a tunnel interface named Tunnel0. You can choose any name you like.
ip address 10.10.10.1 255.255.255.252: This configures the IP address of the tunnel interface. Choose an IP address within a private subnet that is not used elsewhere in your network. The /30 subnet provides only two usable IP addresses, one for each end of the tunnel.
tunnel source <ASA_Public_IP_1>: This specifies the public IP address of the ASA firewall as the source of the tunnel.
tunnel destination <ASA_Public_IP_2>: This specifies the public IP address of the peer ASA firewall as the destination of the tunnel.
tunnel mode gre ip: This specifies that the tunnel will use GRE encapsulation.

Repeat this step on the other ASA, but swap the IP addresses for ip address, tunnel source and tunnel destination. For example, on the other ASA, Tunnel0 interface would have ip address 10.10.10.2 255.255.255.252

Step 5: Configure Routing

Finally, you need to configure routing to direct traffic through the tunnel interface. This typically involves adding static routes to the routing table. Here’s an example:

route inside 10.2.2.0 255.255.255.0 10.10.10.2
route outside 0.0.0.0 0.0.0.0 <ISP_Gateway>

route inside 10.2.2.0 255.255.255.0 10.10.10.2: This adds a static route to the routing table that directs traffic destined for the 10.2.2.0/24 network to the tunnel interface. 10.10.10.2 is the IP address of the tunnel interface on the remote ASA.
route outside 0.0.0.0 0.0.0.0 <ISP_Gateway>: This is the default route, directing all traffic not explicitly routed elsewhere to your ISP’s gateway.

Repeat similar routing on the other ASA, pointing to the relevant networks and tunnel interface IP. Remember to adjust these routes according to your specific network topology.

Troubleshooting GRE over IPSec

Even with careful configuration, issues can arise. Here are some common troubleshooting steps for GRE over IPSec on Cisco ASA:

Verify Connectivity: Use the ping command to verify connectivity between the ASA firewalls and the devices on the other side of the tunnel. Ping the tunnel interface IP addresses first, and then devices on the protected networks. Ensure that the appropriate routes are in place.
Check ISAKMP and IPSec Status: Use the show crypto isakmp sa and show crypto ipsec sa commands to verify the status of the ISAKMP and IPSec security associations. Look for errors or failures in the output.
Examine Access Lists: Ensure that the access lists are correctly configured and that they are permitting the necessary traffic. Use the show access-list command to view the access list configurations.
Review Crypto Map Configuration: Double-check the crypto map configuration to ensure that the encryption and authentication algorithms, the key exchange method, and the peer IP address are correctly configured. Use the show crypto map command to view the crypto map configurations.
Inspect Tunnel Interface Configuration: Verify that the tunnel interface is correctly configured and that the IP address, tunnel source, and tunnel destination are correctly specified. Use the show interface tunnel0 command to view the tunnel interface configuration.
Debug Commands: Use the debug crypto isakmp and debug crypto ipsec commands to troubleshoot ISAKMP and IPSec issues. These commands provide detailed information about the negotiation process and can help identify the source of the problem. Be cautious when using debug commands in a production environment, as they can generate a large amount of output and impact performance. Remember to disable debugging after troubleshooting is complete.
ASA Logging: Configure ASA logging to capture relevant events. Examine the logs for error messages or failures related to IPSec or GRE. Proper logging can provide valuable insights into the root cause of issues.

Best Practices for GRE over IPSec on Cisco ASA

To ensure a secure and reliable GRE over IPSec on Cisco ASA implementation, consider the following best practices:

Use Strong Encryption Algorithms: Choose strong encryption algorithms, such as AES-256, for both ISAKMP and IPSec. Avoid using weaker algorithms, such as DES or 3DES, as they are more vulnerable to attacks.
Use Strong Authentication Methods: Use strong authentication methods, such as pre-shared keys or digital certificates, for ISAKMP. Avoid using weaker authentication methods, such as passwords.
Enable Perfect Forward Secrecy (PFS): Enable PFS to ensure that the compromise of one key will not compromise past or future keys. This adds an extra layer of security to the IPSec connection.
Regularly Rotate Keys: Regularly rotate the ISAKMP and IPSec keys to minimize the risk of compromise. This can be done by configuring the key lifetime parameters appropriately.
Implement Access Control: Implement strict access control policies to limit access to the ASA firewalls and the tunnel interfaces. This helps prevent unauthorized access and tampering.
Monitor the Connection: Monitor the IPSec connection regularly to detect any issues or failures. Use monitoring tools to track the status of the connection and receive alerts when problems occur. SNMP monitoring can be particularly helpful.
Keep ASA Software Up-to-Date: Regularly update the ASA software to the latest version to patch security vulnerabilities and improve performance. This helps protect against known attacks and ensures that the ASA firewalls are running optimally.

By following these best practices, you can ensure that your GRE over IPSec on Cisco ASA implementation is secure, reliable, and efficient.

Conclusion

Configuring GRE over IPSec on Cisco ASA provides a secure and flexible solution for transporting diverse network traffic across untrusted networks. By understanding the underlying technologies, following the step-by-step configuration guide, and implementing the best practices outlined in this article, network administrators can establish robust and encrypted communication channels between geographically dispersed locations. Remember to regularly monitor and maintain the connection to ensure its continued security and reliability. The combination of GRE’s flexibility with IPSec’s security features makes it a powerful tool in modern network management.
