Graphical Representation of Absolute Value Functions

Oct 13, 2025 by miodeya.com 124 views

Understanding Absolute Value Inequalities

Absolute value inequalities involve expressions within absolute value signs, and the goal is to find the values of the variable that satisfy the given inequality. In this case, we are dealing with the inequality $|x+1|+2 > 5$ . To solve this inequality, we need to isolate the absolute value expression and then consider the two cases that arise from the definition of absolute value.

Graphical Representation of Absolute Value Functions

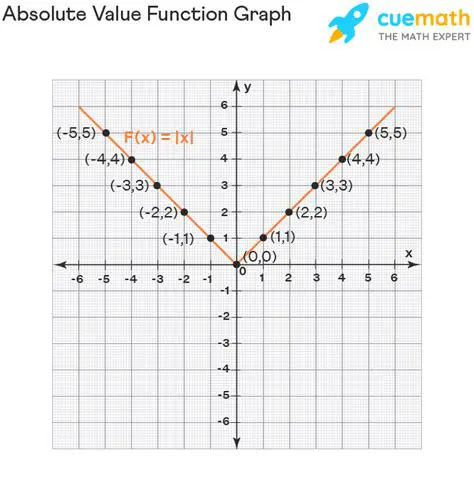

The absolute value function $f(x) = |x|$ can be represented graphically as a V-shaped graph with its vertex at the origin. The graph consists of two linear segments: one with a positive slope and the other with a negative slope. The point of intersection between the two segments is the vertex, which is at $(0, 0)$ .

Graphical Representation of the Inequality

To represent the inequality $|x+1|+2 > 5$ graphically, we need to first isolate the absolute value expression. We can do this by subtracting 2 from both sides of the inequality, which gives us $|x+1| > 3$ . This inequality can be represented graphically as a V-shaped graph with its vertex at $(-1, 3)$ .

Solving the Inequality

To solve the inequality $|x+1| > 3$ , we need to consider the two cases that arise from the definition of absolute value.

Case 1: $x+1 \geq 0$

In this case, the absolute value expression $|x+1|$ is equal to $x+1$ . We can rewrite the inequality as $x+1 > 3$ , which gives us $x > 2$ . Since $x+1 \geq 0$ , we know that $x \geq -1$ . Therefore, the solution to this case is $x > 2$ .

Case 2: $x+1 < 0$

In this case, the absolute value expression $|x+1|$ is equal to $-(x+1)$ . We can rewrite the inequality as $-(x+1) > 3$ , which gives us $-x-1 > 3$ . Simplifying this inequality, we get $-x > 4$ , which gives us $x < -4$ . Since $x+1 < 0$ , we know that $x < -1$ . Therefore, the solution to this case is $x < -4$ .

Combining the Solutions

The solution to the inequality $|x+1| > 3$ is the union of the solutions to the two cases. Therefore, the solution is $x < -4$ or $x > 2$ .

Graphical Representation of the Solution

The solution to the inequality $|x+1| > 3$ can be represented graphically as a union of two intervals: $(-\infty, -4)$ and $(2, \infty)$ .

Conclusion

In this article, we have used a graphical approach to solve the inequality $|x+1|+2 > 5$ . We have isolated the absolute value expression and considered the two cases that arise from the definition of absolute value. We have then combined the solutions to the two cases to obtain the final solution, which is $x < -4$ or $x > 2$ . This solution can be represented graphically as a union of two intervals: $(-\infty, -4)$ and $(2, \infty)$ .

Answer

The correct answer is A. $(-\infty, -4) \cup (2, \infty)$ .

Final Thoughts

Solving inequalities with absolute value can be a challenging task, but using a graphical approach can make it more manageable. By isolating the absolute value expression and considering the two cases that arise from the definition of absolute value, we can obtain the final solution. In this article, we have used a graphical approach to solve the inequality $|x+1|+2 > 5$ , and we have obtained the solution $x < -4$ or $x > 2$ . This solution can be represented graphically as a union of two intervals: $(-\infty, -4)$ and $(2, \infty)$ .

Q: What is an absolute value inequality?

A: An absolute value inequality is an inequality that involves an expression within absolute value signs. The goal is to find the values of the variable that satisfy the given inequality.

Q: How do I solve an absolute value inequality?

A: To solve an absolute value inequality, you need to isolate the absolute value expression and then consider the two cases that arise from the definition of absolute value. You can use a graphical approach to represent the inequality and find the solution.

Q: What is the definition of absolute value?

A: The absolute value of a number is its distance from zero on the number line. If the number is positive, its absolute value is the same as the number. If the number is negative, its absolute value is the opposite of the number.

Q: How do I represent an absolute value inequality graphically?

A: To represent an absolute value inequality graphically, you need to isolate the absolute value expression and then draw a V-shaped graph with its vertex at the point where the absolute value expression is equal to zero.

Q: What are the two cases that arise from the definition of absolute value?

A: The two cases that arise from the definition of absolute value are:

Case 1: The absolute value expression is equal to the variable or expression within the absolute value signs.
Case 2: The absolute value expression is equal to the negative of the variable or expression within the absolute value signs.

Q: How do I combine the solutions to the two cases?

A: To combine the solutions to the two cases, you need to find the union of the solutions to each case. This means that you need to find the values of the variable that satisfy both cases.

Q: What is the solution to the inequality $|x+1| > 3$ ?

A: The solution to the inequality $|x+1| > 3$ is $x < -4$ or $x > 2$ .

Q: How do I represent the solution graphically?

A: To represent the solution graphically, you need to draw a union of two intervals: $(-\infty, -4)$ and $(2, \infty)$ .

Q: What is the correct answer to the inequality $|x+1|+2 > 5$ ?

A: The correct answer is A. $(-\infty, -4) \cup (2, \infty)$ .

Q: Can I use a graphical approach to solve any type of inequality?

A: No, a graphical approach is not suitable for all types of inequalities. It is particularly useful for solving absolute value inequalities and inequalities involving linear functions.

Q: What are some common mistakes to avoid when solving absolute value inequalities?

A: Some common mistakes to avoid when solving absolute value inequalities include:

Failing to isolate the absolute value expression
Not considering the two cases that arise from the definition of absolute value
Not combining the solutions to the two cases correctly

Q: How can I practice solving absolute value inequalities?

A: You can practice solving absolute value inequalities by working through examples and exercises in a textbook or online resource. You can also try solving inequalities on your own and then checking your answers with a calculator or online tool.
