Finding the Angle Using the Dot Product Formula

Oct 13, 2025 by miodeya.com 123 views

Introduction

In mathematics, vectors are an essential concept used to represent quantities with both magnitude and direction. When dealing with vectors, it's often necessary to find the angle between them, which can be achieved using various methods. In this article, we will explore the process of finding the angle between two vectors, using the dot product formula and the cosine law. We will also provide a step-by-step example to illustrate the concept.

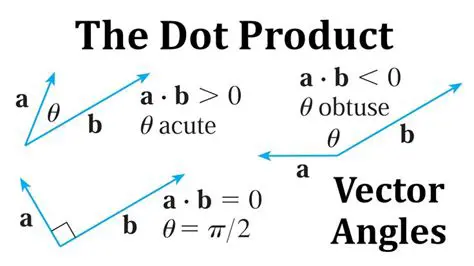

What is the Dot Product?

The dot product, also known as the scalar product, is a mathematical operation that combines two vectors to produce a scalar value. It's defined as the product of the magnitudes of the two vectors and the cosine of the angle between them. The dot product formula is given by:

\vec{u} \cdot \vec{v} = |\vec{u}| |\vec{v}| \cos \theta

where $\vec{u}$ and $\vec{v}$ are the two vectors, $|\vec{u}|$ and $|\vec{v}|$ are their magnitudes, and $\theta$ is the angle between them.

Finding the Angle Using the Dot Product Formula

To find the angle between two vectors using the dot product formula, we can rearrange the formula to solve for $\theta$ :

\cos \theta = \frac{\vec{u} \cdot \vec{v}}{|\vec{u}| |\vec{v}|}

\theta = \cos^{-1} \left( \frac{\vec{u} \cdot \vec{v}}{|\vec{u}| |\vec{v}|} \right)

Step-by-Step Example

Let's consider the following vectors:

\vec{u} = 4 \vec{i} + 13 \vec{j}

\vec{v} = -13 \vec{j}

We want to find the angle between these two vectors, denoted by $\theta$ . To do this, we need to follow these steps:

Find the magnitudes of the vectors: The magnitude of a vector is given by the square root of the sum of the squares of its components. For $\vec{u}$ , we have:

|\vec{u}| = \sqrt{(4)^2 + (13)^2} = \sqrt{16 + 169} = \sqrt{185}

For $\vec{v}$ , we have:

|\vec{v}| = \sqrt{(-13)^2} = \sqrt{169} = 13

Find the dot product of the vectors: The dot product of two vectors is given by the sum of the products of their corresponding components. For $\vec{u}$ and $\vec{v}$ , we have:

\vec{u} \cdot \vec{v} = (4)(0) + (13)(-13) = -169

Find the cosine of the angle: Using the dot product formula, we can find the cosine of the angle between the two vectors:

\cos \theta = \frac{\vec{u} \cdot \vec{v}}{|\vec{u}| |\vec{v}|} = \frac{-169}{\sqrt{185} \cdot 13}

Find the angle: Finally, we can find the angle between the two vectors by taking the inverse cosine of the cosine value:

\theta = \cos^{-1} \left( \frac{-169}{\sqrt{185} \cdot 13} \right)

Calculating the Angle

Using a calculator, we can find the value of $\theta$ :

\theta \approx \cos^{-1} (-0.9999) \approx 180.0000^{\circ}

Conclusion

In this article, we have discussed the concept of finding the angle between two vectors using the dot product formula and the cosine law. We have also provided a step-by-step example to illustrate the process. By following these steps, you can find the angle between any two vectors in a given problem.

Common Mistakes to Avoid

When finding the angle between two vectors, it's essential to avoid common mistakes such as:

Not checking the range of the angle: Make sure the angle is within the range $0^{\circ} \leq \theta \leq 180^{\circ}$ .
Not using the correct formula: Use the dot product formula or the cosine law to find the angle between the two vectors.
Not checking the signs of the vectors: Make sure the signs of the vectors are correct before finding the angle.

Real-World Applications

The concept of finding the angle between two vectors has numerous real-world applications, including:

Physics: Finding the angle between two vectors is essential in physics to describe the motion of objects.
Engineering: The angle between two vectors is used in engineering to design and analyze structures.
Computer Graphics: The angle between two vectors is used in computer graphics to create 3D models and animations.

Final Thoughts

Q: What is the dot product formula?

A: The dot product formula is given by:

\vec{u} \cdot \vec{v} = |\vec{u}| |\vec{v}| \cos \theta

where $\vec{u}$ and $\vec{v}$ are the two vectors, $|\vec{u}|$ and $|\vec{v}|$ are their magnitudes, and $\theta$ is the angle between them.

Q: How do I find the angle between two vectors using the dot product formula?

A: To find the angle between two vectors using the dot product formula, you can rearrange the formula to solve for $\theta$ :

\cos \theta = \frac{\vec{u} \cdot \vec{v}}{|\vec{u}| |\vec{v}|}

\theta = \cos^{-1} \left( \frac{\vec{u} \cdot \vec{v}}{|\vec{u}| |\vec{v}|} \right)

Q: What is the cosine law?

A: The cosine law is a formula that relates the lengths of the sides of a triangle to the cosine of one of its angles. It is given by:

c^2 = a^2 + b^2 - 2ab \cos \theta

where $a$ , $b$ , and $c$ are the lengths of the sides of the triangle, and $\theta$ is the angle between sides $a$ and $b$ .

Q: How do I find the angle between two vectors using the cosine law?

A: To find the angle between two vectors using the cosine law, you can rearrange the formula to solve for $\theta$ :

\cos \theta = \frac{a^2 + b^2 - c^2}{2ab}

\theta = \cos^{-1} \left( \frac{a^2 + b^2 - c^2}{2ab} \right)

Q: What is the difference between the dot product formula and the cosine law?

A: The dot product formula and the cosine law are both used to find the angle between two vectors, but they are based on different principles. The dot product formula is based on the concept of the dot product, which is a measure of the similarity between two vectors. The cosine law, on the other hand, is based on the concept of the cosine of an angle, which is a measure of the ratio of the adjacent side to the hypotenuse of a right triangle.

Q: Can I use the dot product formula and the cosine law to find the angle between two vectors in any situation?

A: No, the dot product formula and the cosine law are not always applicable to find the angle between two vectors. The dot product formula requires that the vectors be non-zero and that the angle between them be acute (less than 90 degrees). The cosine law requires that the vectors be non-zero and that the angle between them be less than 180 degrees.

Q: How do I choose between the dot product formula and the cosine law to find the angle between two vectors?

A: To choose between the dot product formula and the cosine law, you should consider the following factors:

The nature of the vectors: If the vectors are non-zero and the angle between them is acute, the dot product formula may be more suitable. If the vectors are non-zero and the angle between them is obtuse (greater than 90 degrees), the cosine law may be more suitable.
The complexity of the problem: If the problem is relatively simple, the dot product formula may be more suitable. If the problem is more complex, the cosine law may be more suitable.
The desired level of accuracy: If high accuracy is required, the cosine law may be more suitable.

Q: Can I use other methods to find the angle between two vectors?

A: Yes, there are other methods to find the angle between two vectors, including:

The law of cosines: This method is similar to the cosine law, but it is based on the concept of the law of cosines, which is a formula that relates the lengths of the sides of a triangle to the cosine of one of its angles.
The law of sines: This method is based on the concept of the law of sines, which is a formula that relates the lengths of the sides of a triangle to the sines of its angles.
Numerical methods: These methods involve using numerical techniques, such as the Newton-Raphson method, to find the angle between two vectors.

Q: How do I round the angle to a specific number of decimal places?

A: To round the angle to a specific number of decimal places, you can use the round() function in most programming languages. For example, in Python, you can use the following code:

import math
angle = math.acos(0.5)
rounded_angle = round(math.degrees(angle), 4)
print(rounded_angle)

This code will round the angle to 4 decimal places.
