Understanding EFI Boot Selection: A Comprehensive Guide

The EFI (Extensible Firmware Interface) boot selection is a crucial aspect of modern computer systems, acting as the bridge between the hardware and the operating system. Understanding the process of EFI boot selection is paramount for anyone who wants to efficiently manage their computer’s boot process, troubleshoot issues, and even delve into system customization. This comprehensive guide explains everything you need to know about EFI boot, from its basic principles to advanced configuration options. The EFI boot selection process determines which operating system or bootable environment your computer starts. Unlike legacy BIOS systems, EFI offers a more sophisticated and flexible approach to booting, allowing for multiple boot options and a standardized interface for interacting with hardware. Before we dive deeper into the specifics of EFI, it’s essential to understand why it replaced the older BIOS system. BIOS, or Basic Input/Output System, was the standard firmware interface for decades. However, it had limitations in terms of addressing large storage devices, supporting modern hardware, and providing a user-friendly boot experience. EFI was introduced as a replacement, addressing these limitations and offering a more robust and extensible platform. The key advantages of EFI over BIOS include support for larger hard drives (over 2.2TB), faster boot times, improved security features (such as Secure Boot), and a graphical user interface (GUI) for boot management. EFI operates using a different architecture than BIOS. It uses a modular design, with various drivers and services loaded at boot time. This allows for greater flexibility and customization. The firmware interface resides on a non-volatile memory chip, like a flash ROM, on the motherboard. When you power on your computer, the EFI firmware initializes the hardware components and prepares the system for booting. This initialization process involves checking the system’s hardware configuration, loading essential drivers, and displaying boot options to the user. One of the core components of EFI is the boot manager. The boot manager is responsible for enumerating the available boot options, presenting them to the user, and initiating the selected boot process. Boot options can include different operating systems, recovery environments, or bootable media such as USB drives or DVDs. The boot manager can be accessed through the firmware settings, usually by pressing a specific key during startup (e.g., Delete, F2, F12, or Esc).

Key Components of the EFI Boot Process

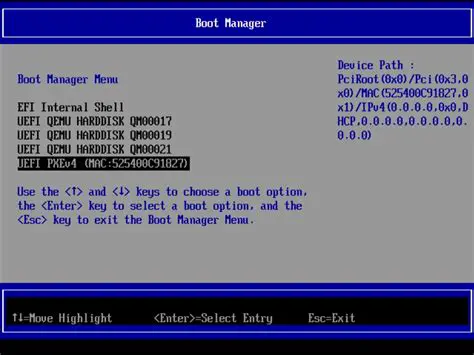

The EFI boot process involves several key components that work together to load the operating system. These components include the UEFI firmware, boot loaders, and the operating system kernel. Understanding these components is essential for troubleshooting boot issues and customizing the boot process. UEFI (Unified Extensible Firmware Interface) is the modern implementation of the EFI standard. UEFI provides a standardized interface for hardware and software to interact during the boot process. It offers a more flexible and extensible architecture than the original EFI specification. UEFI firmware is stored in non-volatile memory on the motherboard and is responsible for initializing the hardware and loading the boot loader. The UEFI firmware includes a boot manager, which presents the user with a menu of available boot options. These boot options can include different operating systems, recovery environments, or bootable media. The boot manager allows the user to select the desired boot option, which then loads the corresponding boot loader. Boot loaders are small programs that load the operating system kernel into memory and initiate the operating system startup process. Common boot loaders include GRUB (Grand Unified Bootloader) for Linux systems and the Windows Boot Manager for Windows systems. The boot loader is responsible for locating the operating system kernel on the storage device, loading it into memory, and passing control to the kernel. The operating system kernel is the core of the operating system. It is responsible for managing the system’s resources and providing services to applications. Once the kernel is loaded into memory, it takes control of the system and starts the operating system’s initialization process. The kernel initializes the system’s hardware, loads device drivers, and starts the essential system services. The relationship between the EFI firmware, boot loader, and operating system kernel is crucial for a successful boot process. The EFI firmware initializes the hardware and loads the boot loader. The boot loader loads the operating system kernel, and the kernel takes control of the system. Any issues with these components can lead to boot problems. For example, a corrupted boot loader can prevent the operating system from loading, resulting in a boot failure. Similarly, a faulty EFI firmware can cause the system to fail to initialize the hardware, preventing the boot process from even starting. Troubleshooting boot issues often involves identifying which component is causing the problem. This can be done by examining the error messages displayed during the boot process, checking the system’s hardware configuration, and using diagnostic tools to test the EFI firmware and boot loader. Furthermore, customizing the boot process can involve modifying the boot loader configuration or updating the EFI firmware. This can allow you to change the boot order, add new boot options, or enable advanced features such as Secure Boot. However, it’s important to exercise caution when customizing the boot process, as incorrect configurations can lead to boot failures.

Configuring EFI Boot Options

Configuring EFI boot options allows you to control the order in which your computer attempts to boot from different devices or operating systems. This can be useful if you have multiple operating systems installed or if you want to boot from a USB drive or DVD. The EFI boot options are typically configured through the UEFI firmware settings, which can be accessed by pressing a specific key during startup. Accessing the UEFI firmware settings varies depending on the motherboard manufacturer. Common keys include Delete, F2, F12, and Esc. Consult your motherboard’s manual or the manufacturer’s website for specific instructions. Once you have accessed the UEFI firmware settings, you will typically find a section dedicated to boot options. This section allows you to configure the boot order, add or remove boot options, and enable or disable specific boot devices. The boot order determines the sequence in which the computer attempts to boot from different devices. For example, you can set the boot order to first try booting from the internal hard drive, then from a USB drive, and finally from a DVD. The computer will attempt to boot from the first device in the list. If that device is not bootable, it will move on to the next device in the list, and so on. Adding a new boot option allows you to specify a bootable device or operating system that is not already listed in the boot menu. This can be useful if you have installed a new operating system or if you want to boot from a USB drive that contains a bootable image. To add a new boot option, you will typically need to specify the device to boot from and the path to the boot loader on that device. Removing a boot option allows you to remove an entry from the boot menu that is no longer needed. This can help to clean up the boot menu and make it easier to select the desired boot option. Disabling a boot device allows you to prevent the computer from attempting to boot from that device. This can be useful if you want to ensure that the computer always boots from the internal hard drive, or if you want to prevent the computer from booting from a potentially malicious USB drive. In addition to configuring the boot order and managing boot options, the UEFI firmware settings may also allow you to configure other boot-related settings. These settings can include enabling or disabling Secure Boot, configuring the boot mode (UEFI or Legacy), and setting a boot password. Secure Boot is a security feature that helps to prevent malware from loading during the boot process. When Secure Boot is enabled, the UEFI firmware verifies the digital signature of the boot loader and only allows it to load if the signature is valid. This helps to ensure that the computer is booting from a trusted boot loader and not from a malicious one. The boot mode determines whether the computer boots in UEFI mode or Legacy mode. UEFI mode is the modern boot mode and is recommended for most systems. Legacy mode is a compatibility mode that allows the computer to boot from older operating systems that do not support UEFI. Setting a boot password allows you to require a password before the computer can boot. This can help to protect the computer from unauthorized access.

Troubleshooting Common EFI Boot Issues

Troubleshooting EFI boot issues is a crucial skill for maintaining a functional computer system. Understanding the common causes of boot problems and knowing how to diagnose and resolve them can save you time and frustration. One of the most common EFI boot issues is the infamous “No Bootable Device Found” error. This error typically indicates that the computer is unable to find a valid boot loader on any of the available boot devices. There are several possible causes for this error, including a corrupted boot loader, a disconnected or damaged hard drive, or an incorrect boot order in the UEFI firmware settings. To troubleshoot this error, start by checking the boot order in the UEFI firmware settings. Make sure that the correct hard drive or boot device is listed as the first boot option. If the boot order is correct, check the hard drive connections to ensure that the hard drive is properly connected to the motherboard. If the hard drive connections are secure, try running a diagnostic test on the hard drive to check for errors. If the hard drive test fails, the hard drive may be damaged and need to be replaced. If the hard drive test passes, the boot loader may be corrupted. In this case, you can try to repair the boot loader using a recovery environment or a bootable USB drive. Another common EFI boot issue is the “Operating System Not Found” error. This error indicates that the computer is able to find a boot loader, but the boot loader is unable to locate the operating system kernel. This error can be caused by a corrupted operating system installation, a missing or damaged operating system file, or an incorrect boot loader configuration. To troubleshoot this error, try running a startup repair from a recovery environment or a bootable USB drive. The startup repair tool can often automatically fix common boot problems, such as missing or corrupted operating system files. If the startup repair tool is unable to fix the problem, you may need to reinstall the operating system. In some cases, EFI boot issues can be caused by hardware problems. For example, a faulty motherboard, a damaged CPU, or a malfunctioning RAM module can all cause boot problems. To troubleshoot hardware-related boot issues, try running a diagnostic test on the system’s hardware components. You can use the diagnostic tools built into the UEFI firmware or a bootable diagnostic utility. If a hardware test fails, the corresponding hardware component may need to be replaced. Secure Boot is a security feature that can sometimes cause boot issues, especially after upgrading to a new operating system or installing a new graphics card. If you are experiencing boot issues after making changes to your system, try disabling Secure Boot in the UEFI firmware settings. Disabling Secure Boot may allow the system to boot successfully. Finally, it’s crucial to keep your UEFI firmware up to date. Firmware updates often include bug fixes and performance improvements that can resolve boot issues and improve system stability. Check your motherboard manufacturer’s website for the latest firmware updates and follow their instructions to install the updates.

Advanced EFI Boot Configurations and Customization

Beyond the basics, advanced EFI boot configurations offer a wide range of customization options for power users and system administrators. These configurations can involve modifying boot loaders, creating custom boot entries, and even delving into the UEFI shell for advanced troubleshooting and system management. One common advanced configuration is dual-booting or multi-booting, where you have multiple operating systems installed on your computer and can choose which one to boot into at startup. The EFI boot manager makes it relatively easy to set up dual-boot systems. You can create separate boot entries for each operating system and configure the boot order to specify which operating system to boot by default. Boot loaders like GRUB and rEFInd are commonly used for managing multi-boot systems, offering advanced features like boot menus, theme customization, and support for various operating systems. Another advanced configuration involves customizing the boot loader itself. For example, you can modify the GRUB configuration file to change the boot menu appearance, add custom boot options, or configure kernel parameters. However, modifying the boot loader configuration requires caution, as incorrect configurations can lead to boot failures. The UEFI shell is a command-line interface that provides access to the UEFI firmware environment. It allows you to perform various tasks, such as browsing the file system, executing EFI applications, and managing boot devices. The UEFI shell can be useful for troubleshooting boot issues, recovering from boot failures, and performing advanced system management tasks. For example, you can use the UEFI shell to manually load a boot loader, repair a damaged boot partition, or update the UEFI firmware. Creating custom boot entries can be useful for booting from non-standard devices or for creating specialized boot environments. For example, you can create a custom boot entry to boot from a network drive, a USB drive containing a diagnostic utility, or a custom-built recovery environment. To create a custom boot entry, you typically need to specify the device to boot from, the path to the boot loader, and any necessary boot parameters. Boot loaders can also be used to implement advanced security features. For example, you can use a boot loader to encrypt the boot partition, require a password before booting, or implement two-factor authentication for the boot process. These security features can help to protect your system from unauthorized access and malware attacks. Finally, it’s important to emphasize the importance of backing up your EFI system partition (ESP) before making any significant changes to your EFI boot configuration. The ESP contains the boot loaders, UEFI applications, and other critical files needed for the boot process. A corrupted or damaged ESP can prevent your system from booting. Backing up the ESP allows you to restore your system to a working state if something goes wrong during the customization process.
