Cisco ASA VPN IPSec Configuration Example: A Comprehensive Guide

Securing network access is paramount in today’s interconnected world. Cisco ASA (Adaptive Security Appliance) devices offer robust security features, including Virtual Private Network (VPN) capabilities. This guide provides a comprehensive Cisco ASA VPN IPSec configuration example, walking you through the essential steps to establish a secure IPSec VPN tunnel for remote access. We will explore the necessary commands and concepts, ensuring a solid understanding of the configuration process. This configuration will allow remote users to securely connect to your internal network. Understanding and implementing IPSec VPN on your Cisco ASA is crucial for protecting sensitive data and maintaining business continuity.

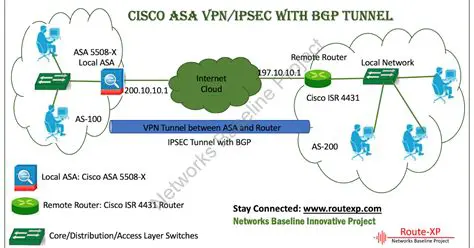

Understanding IPSec VPN on Cisco ASA

Before diving into the configuration, it’s crucial to understand the fundamental concepts behind IPSec VPNs on Cisco ASA. IPSec, or Internet Protocol Security, is a suite of protocols that provide secure communication over IP networks. It achieves this by authenticating and encrypting IP packets. On a Cisco ASA, IPSec VPNs are typically used to establish secure tunnels between remote users or branch offices and the internal network. This ensures that all traffic traversing the public internet is protected from eavesdropping and tampering. The IPSec VPN implementation on Cisco ASA relies on several key components, including the Internet Key Exchange (IKE), Authentication Header (AH), Encapsulating Security Payload (ESP), and security associations (SAs). IKE is responsible for negotiating and establishing the security associations that define the encryption and authentication algorithms used by IPSec. AH provides data integrity and authentication, while ESP provides confidentiality (encryption) in addition to integrity and authentication. Security associations are the agreements between the two endpoints of the VPN tunnel, specifying the cryptographic algorithms and parameters to be used. The Cisco ASA supports various IPSec modes, including tunnel mode, which encrypts the entire IP packet, and transport mode, which only encrypts the payload. Tunnel mode is typically used for VPNs, while transport mode is more common for securing communication between hosts within a network. Understanding these core concepts is essential for effectively configuring and troubleshooting IPSec VPNs on your Cisco ASA. Without a firm grasp of the underlying principles, you may encounter difficulties in establishing and maintaining secure and reliable VPN connections. This guide aims to provide you with the necessary knowledge and practical examples to confidently configure IPSec VPN on your Cisco ASA.

Step-by-Step Cisco ASA VPN IPSec Configuration

This section provides a detailed, step-by-step Cisco ASA VPN IPSec configuration example. We’ll cover everything from initial setup to verifying the connection. Remember to adjust the parameters to match your specific network environment and security requirements. The configuration involves defining the necessary objects, policies, and settings on the Cisco ASA to establish a secure IPSec tunnel. Each step is explained in detail, with accompanying commands to guide you through the process. This example assumes a pre-shared key authentication method, which is suitable for smaller deployments. For larger deployments, consider using certificate-based authentication for enhanced security and scalability. Before you begin, ensure you have console access to your Cisco ASA and the necessary administrative privileges. Double-check your network addressing scheme and ensure that there are no conflicting IP addresses or subnets. Proper planning and preparation are crucial for a successful VPN configuration. The configuration process can be broadly divided into the following steps: defining the IKE policy, configuring the tunnel group, setting up the crypto map, defining the access control list (ACL), and applying the necessary NAT and security policies. Each of these steps will be explained in detail in the following sections, providing you with a comprehensive understanding of the IPSec VPN configuration process on Cisco ASA.

1. Define the IKE Policy

The IKE (Internet Key Exchange) policy defines the security parameters for the initial key exchange process. This is crucial for establishing a secure channel for negotiating the IPSec security associations. On your Cisco ASA, you’ll need to create an IKE policy that specifies the encryption algorithm, hash algorithm, authentication method, Diffie-Hellman group, and lifetime. The encryption algorithm determines the strength of the encryption used to protect the VPN traffic. Common options include AES (Advanced Encryption Standard) and 3DES (Triple Data Encryption Standard). AES is generally preferred due to its stronger security and performance. The hash algorithm provides data integrity and ensures that the data has not been tampered with. Common options include SHA-256, SHA-1, and MD5. SHA-256 is recommended for its stronger security. The authentication method verifies the identity of the VPN endpoints. The most common methods are pre-shared keys and certificates. Pre-shared keys are simpler to configure but less secure than certificates. Certificates provide stronger authentication and are recommended for larger deployments. The Diffie-Hellman group determines the strength of the key exchange process. Larger groups provide stronger security but require more processing power. Common options include Group 14, Group 5, and Group 2. Group 14 is recommended for its stronger security. The lifetime specifies the duration for which the IKE security association is valid. After the lifetime expires, the security association must be renegotiated. A shorter lifetime provides better security but requires more frequent renegotiation. A longer lifetime reduces the overhead of renegotiation but may compromise security. To configure the IKE policy on your Cisco ASA, use the following commands:

crypto ikev1 policy 10
 encryption aes
 hash sha256
 authentication pre-share
 group 14
 lifetime 86400
exit

Explanation:

crypto ikev1 policy 10: Creates an IKEv1 policy with priority 10. Lower numbers have higher priority.
encryption aes: Specifies AES as the encryption algorithm.
hash sha256: Specifies SHA-256 as the hash algorithm.
authentication pre-share: Specifies pre-shared key authentication.
group 14: Specifies Diffie-Hellman Group 14.
lifetime 86400: Sets the lifetime to 86400 seconds (24 hours).

2. Configure the Tunnel Group

The tunnel group defines the parameters for the IPSec tunnel itself. This includes the pre-shared key, IP address pool, and other settings. On your Cisco ASA, you’ll need to create a tunnel group that specifies the type of VPN connection (remote access or site-to-site), the authentication method, and the IP address pool to be assigned to VPN clients. The type of VPN connection determines the mode of operation. Remote access VPNs are used to connect individual users to the network, while site-to-site VPNs are used to connect two or more networks together. The authentication method verifies the identity of the VPN clients. As mentioned earlier, the most common methods are pre-shared keys and certificates. The IP address pool is the range of IP addresses that will be assigned to VPN clients when they connect to the network. It’s important to choose an IP address pool that does not conflict with any existing IP addresses on your network. You can also configure other settings, such as the DNS server and WINS server addresses to be assigned to VPN clients. These settings allow VPN clients to resolve domain names and access network resources using their assigned IP addresses. To configure the tunnel group on your Cisco ASA, use the following commands:

tunnel-group VPN_Tunnel type remote-access
general-attributes
 default-group-policy DfltGrpPolicy
ipsec-attributes
 pre-shared-key cisco123
exit

Explanation:

tunnel-group VPN_Tunnel type remote-access: Creates a remote-access tunnel group named VPN_Tunnel.
general-attributes: Enters general attributes configuration mode.
default-group-policy DfltGrpPolicy: Specifies the default group policy to be applied to the tunnel group. This is configured in the next step.
ipsec-attributes: Enters IPSec attributes configuration mode.
pre-shared-key cisco123: Sets the pre-shared key to cisco123. Important: Use a strong and unique pre-shared key in a production environment.

3. Configure the Group Policy

The group policy defines the access permissions and other settings for VPN clients. This allows you to control what resources VPN clients can access on your network. On your Cisco ASA, you’ll need to create a group policy that specifies the DNS server addresses, WINS server addresses, and other settings to be applied to VPN clients. The DNS server addresses allow VPN clients to resolve domain names and access network resources using their assigned IP addresses. The WINS server addresses are used to resolve NetBIOS names, which are often used by older Windows applications. You can also configure other settings, such as the split tunneling policy, which determines whether VPN traffic is routed through the VPN tunnel or directly to the internet. Split tunneling can improve performance and reduce bandwidth consumption, but it may also compromise security. To configure the group policy on your Cisco ASA, use the following commands:

group-policy DfltGrpPolicy attributes
vpn-tunnel-protocol ikev1 l2tp-ipsec
 address-pool VPN_Pool
 dns-server value 8.8.8.8 8.8.4.4
exit

Explanation:

group-policy DfltGrpPolicy attributes: Enters group policy configuration mode for the DfltGrpPolicy.
vpn-tunnel-protocol ikev1 l2tp-ipsec: Specifies that the group policy supports both IKEv1 and L2TP/IPsec VPN protocols.
address-pool VPN_Pool: Specifies the IP address pool to be assigned to VPN clients. This is configured in the next step.
dns-server value 8.8.8.8 8.8.4.4: Specifies the DNS server addresses to be used by VPN clients (Google Public DNS in this example).

4. Configure the IP Address Pool

The IP address pool defines the range of IP addresses that will be assigned to VPN clients. This is important for ensuring that VPN clients have unique IP addresses and can access network resources. On your Cisco ASA, you’ll need to create an IP address pool that specifies the starting and ending IP addresses, as well as the subnet mask. The starting and ending IP addresses define the range of IP addresses that will be assigned to VPN clients. It’s important to choose an IP address pool that does not conflict with any existing IP addresses on your network. The subnet mask determines the size of the IP address pool. A larger subnet mask provides more IP addresses, but it may also require more configuration. To configure the IP address pool on your Cisco ASA, use the following commands:

ip local pool VPN_Pool 192.168.10.1 192.168.10.254

Explanation:

ip local pool VPN_Pool 192.168.10.1 192.168.10.254: Creates an IP address pool named VPN_Pool with the range 192.168.10.1 to 192.168.10.254.

5. Configure the Crypto Map

The crypto map defines the IPSec policy to be applied to the VPN traffic. This includes the encryption algorithm, hash algorithm, and other settings. On your Cisco ASA, you’ll need to create a crypto map that specifies the IKE policy, the access control list (ACL) that defines the traffic to be encrypted, and the peer IP address. The IKE policy specifies the security parameters for the initial key exchange process. The access control list (ACL) defines the traffic that will be encrypted by the IPSec tunnel. The peer IP address is the IP address of the remote VPN endpoint. You can also configure other settings, such as the perfect forward secrecy (PFS) policy, which ensures that each security association is generated independently of previous security associations. This provides additional security in case one security association is compromised. To configure the crypto map on your Cisco ASA, use the following commands:

crypto map VPN_Map 10 match address VPN_ACL
crypto map VPN_Map 10 set pfs group14
crypto map VPN_Map 10 set ikev1 transform-set ESP-AES-256-SHA256
crypto map VPN_Map 10 set peer <Public_IP_Address>
crypto map VPN_Map interface outside

Explanation:

crypto map VPN_Map 10 match address VPN_ACL: Creates a crypto map entry with sequence number 10 and associates it with the ACL named VPN_ACL. This ACL will define which traffic will be protected by the VPN.
crypto map VPN_Map 10 set pfs group14: Enables Perfect Forward Secrecy (PFS) using Diffie-Hellman group 14. This increases the security of the VPN.
crypto map VPN_Map 10 set ikev1 transform-set ESP-AES-256-SHA256: Specifies the transform set to be used for IPSec encryption. This defines the encryption (AES-256) and hash (SHA256) algorithms.
crypto map VPN_Map 10 set peer <Public_IP_Address>: Specifies the public IP address of the remote VPN gateway.
crypto map VPN_Map interface outside: Applies the crypto map to the outside interface of the ASA.

6. Configure the Access Control List (ACL)

The access control list (ACL) defines the traffic that will be encrypted by the IPSec tunnel. This allows you to control which traffic is protected by the VPN. On your Cisco ASA, you’ll need to create an ACL that specifies the source and destination IP addresses and ports. The source and destination IP addresses and ports define the traffic that will be encrypted by the IPSec tunnel. It’s important to choose an ACL that accurately reflects the traffic that you want to protect. You can also use wildcard masks to specify a range of IP addresses or ports. To configure the ACL on your Cisco ASA, use the following commands:

object network obj_any
 subnet 0.0.0.0 0.0.0.0
access-list VPN_ACL extended permit ip any object obj_any

Explanation:

object network obj_any: Creates an object network to represent any network
subnet 0.0.0.0 0.0.0.0: Defines the subnet as any for the object network
access-list VPN_ACL extended permit ip any object obj_any: Creates an extended access list named VPN_ACL that permits all IP traffic from any source to any destination. This means all traffic will be encrypted.

7. Configure NAT Exemption

Network Address Translation (NAT) can interfere with IPSec VPNs. You need to exempt the VPN traffic from NAT. This prevents the ASA from translating the IP addresses of the VPN traffic, which would break the IPSec tunnel. On your Cisco ASA, you’ll need to create a NAT exemption rule that specifies the source and destination IP addresses and ports. The source and destination IP addresses and ports should match the traffic that is being encrypted by the IPSec tunnel. To configure the NAT exemption on your Cisco ASA, use the following commands:

object network VPN_SUBNET
 subnet 192.168.10.0 255.255.255.0
object network INSIDE_SUBNET
 subnet 192.168.1.0 255.255.255.0
nat (inside,outside) source static VPN_SUBNET VPN_SUBNET destination static INSIDE_SUBNET INSIDE_SUBNET

Explanation:

object network VPN_SUBNET: Creates an object network to define the VPN subnet.
subnet 192.168.10.0 255.255.255.0: Defines the VPN subnet.
object network INSIDE_SUBNET: Creates an object network to define the inside subnet.
subnet 192.168.1.0 255.255.255.0: Defines the inside subnet.
nat (inside,outside) source static VPN_SUBNET VPN_SUBNET destination static INSIDE_SUBNET INSIDE_SUBNET: Exempts traffic between the VPN subnet and the inside subnet from NAT.

Verifying the IPSec VPN Connection

After completing the Cisco ASA VPN IPSec configuration example, it’s essential to verify that the VPN connection is working correctly. This involves checking the status of the IPSec tunnel and testing connectivity between the VPN client and the internal network. The easiest way to verify the IPSec VPN connection is to use the show crypto isakmp sa and show crypto ipsec sa commands on the Cisco ASA. These commands display the status of the IKE and IPSec security associations, respectively. If the security associations are active, it indicates that the VPN tunnel is established. You can also use the ping command to test connectivity between the VPN client and the internal network. If the ping is successful, it confirms that the VPN client can communicate with the internal network. If you encounter any problems, you can use the debug crypto isakmp and debug crypto ipsec commands to troubleshoot the issue. These commands provide detailed information about the IKE and IPSec negotiations, which can help you identify the root cause of the problem. Another useful tool for verifying the IPSec VPN connection is the VPN client software itself. Most VPN client software provides a status display that shows the current connection status, as well as any error messages. By carefully reviewing the status display and error messages, you can quickly identify any issues with the VPN connection. It’s also important to test the VPN connection from multiple locations and with different VPN clients to ensure that the configuration is working correctly in all scenarios. This can help you identify any compatibility issues or configuration errors that may only occur in certain circumstances. By thoroughly verifying the IPSec VPN connection, you can ensure that your remote users can securely connect to your internal network.

Troubleshooting Common Issues

Even with a careful configuration, you might encounter issues with your Cisco ASA VPN IPSec setup. This section addresses some common problems and offers troubleshooting tips. One of the most common issues is related to the pre-shared key. Ensure that the pre-shared key configured on the Cisco ASA matches the pre-shared key configured on the VPN client. Even a minor typo can prevent the VPN connection from being established. Another common issue is related to the access control list (ACL). The ACL must permit the traffic that you want to encrypt by the IPSec tunnel. If the ACL is too restrictive, it may block legitimate traffic and prevent the VPN connection from working correctly. It’s important to review the ACL carefully and ensure that it includes all the necessary traffic. NAT can also cause issues with IPSec VPNs. If NAT is enabled on the Cisco ASA, you need to exempt the VPN traffic from NAT. Otherwise, the ASA may translate the IP addresses of the VPN traffic, which would break the IPSec tunnel. The IKE policy and transform set must also be compatible between the Cisco ASA and the VPN client. If the IKE policy or transform set is not supported by the VPN client, the VPN connection will not be established. It’s important to choose an IKE policy and transform set that are compatible with both the Cisco ASA and the VPN client. Finally, firewall rules can also interfere with IPSec VPNs. Ensure that your firewall rules allow the necessary traffic to pass through the VPN tunnel. If the firewall rules are too restrictive, they may block legitimate traffic and prevent the VPN connection from working correctly. By carefully reviewing your configuration and troubleshooting any issues that arise, you can ensure that your IPSec VPN is working correctly and providing secure access to your network. The use of debugging tools such as debug crypto isakmp and debug crypto ipsec is highly recommended for identifying the root cause of any problems.

By following this comprehensive guide and adapting the examples to your specific environment, you can successfully configure a secure Cisco ASA VPN IPSec connection, ensuring safe and reliable remote access to your network resources.
