Mastering Cisco ASA Debug IPsec Tunnel: Your Comprehensive Troubleshooting Guide

When establishing and maintaining secure Virtual Private Networks (VPNs) through Cisco ASA firewalls, encountering issues with your IPsec tunnels is an inevitable part of network administration. The ability to effectively debug IPsec tunnel configurations on your Cisco Adaptive Security Appliance (ASA) is not just a useful skill; it’s an essential competency for ensuring robust and reliable VPN connectivity. This comprehensive guide delves into the intricacies of using Cisco ASA debug commands specifically tailored for IPsec tunnels, empowering you to diagnose, troubleshoot, and resolve a wide array of VPN-related challenges. We’ll explore the most critical commands, explain their output, and provide practical scenarios to help you become a master of IPsec tunnel troubleshooting.

Understanding the Importance of Debugging Cisco ASA IPsec Tunnels

In today’s interconnected world, businesses rely heavily on secure and stable VPN connections for remote access, site-to-site connectivity, and protecting sensitive data in transit. When these connections falter, it can lead to significant disruptions in operations, impacting productivity and potentially causing financial losses. The Cisco ASA, a stalwart in network security, offers a powerful suite of tools for configuring and managing IPsec VPNs. However, like any complex system, issues can arise. Debugging Cisco ASA IPsec tunnels is the process of systematically identifying the root cause of these issues, whether it’s a failure to establish a tunnel, intermittent connectivity, or performance degradation. Without proper debugging capabilities, troubleshooting can become a frustrating and time-consuming endeavor, often involving guesswork and trial-and-error. By understanding and leveraging the debug ipsec commands, network administrators can gain invaluable visibility into the tunnel negotiation process, packet flow, and security associations (SAs), enabling them to pinpoint problems with precision and implement effective solutions. This proactive approach to problem-solving not only resolves immediate issues but also contributes to the overall health and security posture of your network. The debug ipsec commands act as your forensic tools, allowing you to peer into the heart of the IPsec negotiation and data transmission, revealing exactly where communication breaks down. This level of granular insight is paramount when dealing with intricate protocols like IPsec, which involve multiple phases of negotiation, complex encryption algorithms, and strict adherence to standards. The consequences of an unsecured or unreliable VPN can be severe, ranging from data breaches to compliance violations. Therefore, investing the time to master these debugging techniques is an investment in the security and reliability of your organization’s network infrastructure. We will break down the most common debug ipsec command options, explain what the output signifies, and provide practical examples to illustrate their application in real-world scenarios, transforming potential network headaches into manageable troubleshooting tasks.

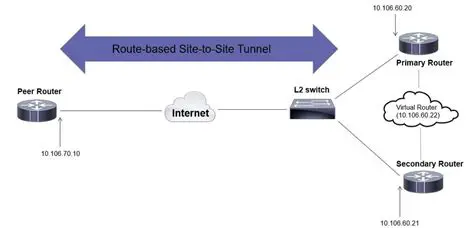

The Anatomy of an IPsec Tunnel Negotiation

Before diving into the debugging commands, it’s crucial to grasp the fundamental stages involved in establishing an IPsec tunnel. This understanding will provide context for the output you’ll see when using debug commands. The IPsec VPN establishment process is typically divided into two phases:

Phase 1 (IKEv1/IKEv2): This phase establishes a secure channel for negotiating Phase 2 parameters. It involves authenticating the peers and agreeing on encryption and hashing algorithms for the control channel. Key concepts here include ISAKMP (Internet Key Exchange Security Association Management Protocol) policies, Diffie-Hellman (DH) groups, pre-shared keys (PSKs) or certificates, and the negotiation of IKE SAs. The ASA will exchange proposals and acceptments, ensuring both sides agree on the security parameters for the control plane. This is where initial authentication occurs, verifying the identity of the devices attempting to form the tunnel. If Phase 1 fails, the subsequent establishment of the data tunnel (Phase 2) will also fail. Common issues in Phase 1 include mismatched crypto ISAKMP policies, incorrect pre-shared keys, or certificate validation problems. The ASA must successfully negotiate a secure channel to exchange the information needed for the actual data encryption.
Phase 2 (IPsec): Once Phase 1 is successfully completed, Phase 2 establishes the IPsec SAs for encrypting and authenticating the actual user data. This phase defines the security parameters for the data tunnel itself, including protocols like ESP (Encapsulating Security Payload) or AH (Authentication Header), encryption and hashing algorithms, and the lifetime of the SAs. The ASA will propose and accept transform sets, which define these parameters. This is where the actual data encryption keys are generated and exchanged, and the policies for protecting the traffic are established. Successful Phase 2 negotiation is indicated by the creation of active IPsec SAs. Problems in Phase 2 can stem from mismatched transform sets, incompatible encryption or hashing algorithms, or issues with Perfect Forward Secrecy (PFS) if it’s enabled. The success of Phase 2 is directly dependent on the successful completion of Phase 1, as it relies on the secure channel established in the first phase to exchange the necessary information. The data traffic will then be encapsulated and protected according to the agreed-upon Phase 2 parameters, ensuring confidentiality and integrity as it traverses the untrusted network.

Understanding these phases is critical because the debug ipsec commands will often provide output related to the activities occurring within each of them. By recognizing the stage at which a tunnel is failing, you can narrow down your troubleshooting efforts considerably.

The Core Cisco ASA Debug IPsec Tunnel Commands

Cisco ASA provides a granular set of debug commands to inspect various aspects of IPsec tunnel operation. While it’s possible to enable debugging for almost every aspect of the ASA’s functionality, focusing on IPsec-specific commands is crucial for efficiency. Excessive debugging can overwhelm the ASA’s CPU and flood your console with irrelevant information. Therefore, it’s essential to enable specific, targeted debugs.

`debug crypto isakmp`

This command is your primary tool for troubleshooting Phase 1 (IKEv1/IKEv2) negotiation failures. It provides detailed output about the IKE (Internet Key Exchange) negotiation process. When you enable debug crypto isakmp, you’ll see information about:

ISAKMP Policy Negotiation: The ASA’s attempts to match its ISAKMP policies with those proposed by the remote peer. This includes details on encryption, hashing, authentication, DH group, and lifetime agreements. You can observe which policies are proposed, accepted, or rejected, and the reasons for any mismatches. This is particularly useful when dealing with interoperability issues between different vendors or configurations.
Authentication: Information about the authentication process, whether it’s using pre-shared keys (PSKs) or certificates. For PSKs, you’ll see attempts to match the configured PSK. For certificates, you’ll see information related to certificate validation and trust establishment. Any errors during this process, such as incorrect PSKs or expired/invalid certificates, will be clearly indicated.
Key Exchange: Details about the Diffie-Hellman exchange, which is used to securely generate shared secret keys without transmitting them directly over the network. This output can help identify issues related to DH group mismatches or failures in the exchange.
SA Creation and Deletion: When an IKE SA is successfully established or deleted, you’ll see notifications. This helps track the lifecycle of the control plane security association.

Output Interpretation: Look for keywords like MM_WAIT_MSG2, MM_AUTH_SENT, QM_IDLE, INVALID_KEY, NO_PROPOSAL_CHOSEN, AUTHENTICATION_FAILED, or INVALID_SYNTAX. These often point to specific negotiation failures. For example, NO_PROPOSAL_CHOSEN typically means that the peers could not agree on compatible ISAKMP policies. AUTHENTICATION_FAILED suggests an issue with the pre-shared key or certificate authentication.

Example Use Case: If your site-to-site VPN is not coming up, and you suspect Phase 1 is the problem, you would enable debug crypto isakmp and then initiate a tunnel re-key or traffic that should trigger tunnel establishment. Observing the output will reveal where the negotiation breaks down. You might see the ASA sending proposals that are not accepted by the peer, or the peer sending proposals that the ASA cannot match. This command is fundamental for any IPsec troubleshooting involving the initial connection setup.

Important Note: To view specific levels of debug crypto isakmp output, you can use qualifiers like debug crypto isakmp 127 (which enables most debug messages for ISAKMP) or debug crypto isakmp 7 (for more detailed information on specific aspects). However, starting with a broader level and then narrowing down is often effective. Always remember to disable the debugs when you are finished to prevent performance degradation.

`debug crypto ipsec`

This command is the workhorse for Phase 2 (IPsec) troubleshooting. It provides detailed output about the IPsec Security Association (SA) establishment, management, and data path. When debug crypto ipsec is enabled, you’ll gain visibility into:

IPsec SA Negotiation: The process of establishing the IPsec SAs for data encryption. This includes the negotiation of transform sets (encryption, authentication, and hashing algorithms for ESP/AH) and the exchange of security policy databases (SPDs).
Packet Processing: How IPsec packets are processed, including encapsulation, decapsulation, encryption, decryption, authentication, and de-authentication. You can see if traffic is being correctly identified for VPN processing, if it’s being encrypted, and if it’s reaching the other side decrypted.
SA State: The status of IPsec SAs, including creation, deletion, and re-keying. This helps track the lifetime of the SAs and identify if they are expiring prematurely or failing to be re-established.
Crypto Map Matching: How crypto maps are applied to traffic and how the ASA determines which traffic should be encrypted. This is crucial for ensuring that the correct traffic is being sent over the VPN tunnel.

Output Interpretation: Look for messages related to IPsec SA Found, IPsec SA Added, IPsec SA Deleted, packet decrypted, packet encrypted, transform set mismatch, or no crypto map entry matched. These indicators can pinpoint issues with the IPsec configuration, such as incompatible transform sets, incorrect crypto map entries, or problems with the policy that defines what traffic should be encrypted.

Example Use Case: If your IPsec tunnel is established, but no data is flowing, or data is intermittently lost, debug crypto ipsec is your go-to command. You can observe if the ASA is identifying the traffic destined for the VPN, if it’s attempting to encrypt it, and if it’s receiving encrypted traffic from the peer. A common scenario is seeing transform set mismatch errors, indicating that the two peers have different encryption or hashing algorithms configured for the data tunnel. This command provides a clear view into the data plane operations of the IPsec tunnel.

Important Note: Similar to debug crypto isakmp, you can use numerical levels for debug crypto ipsec (e.g., debug crypto ipsec 255 for maximum verbosity). However, be cautious with high levels of debugging as they can generate an enormous amount of output, making it difficult to find specific errors and potentially impacting ASA performance. It’s often best to start with a more targeted approach if you have an idea of the problem area.

`show crypto isakmp sa` and `show crypto ipsec sa`

While not strictly debug commands, these show commands are indispensable companions to the debug process. They provide a snapshot of the current state of your IKE and IPsec Security Associations. Using them in conjunction with debug commands allows you to correlate real-time negotiation events with the established SAs.

show crypto isakmp sa: Displays information about the established Phase 1 (IKE) SAs. You’ll see details like the local and remote peers, the IKE version, the state of the SA (e.g., MM_ACTIVE), and the lifetime. This command helps confirm if Phase 1 has successfully completed and is in an active state.
show crypto ipsec sa: Displays information about the established Phase 2 (IPsec) SAs. This includes details like the local and remote peers, the encryption and authentication algorithms in use, the number of packets encrypted/decrypted, and the lifetime of the SAs. This command is crucial for verifying that Phase 2 has successfully negotiated and is actively protecting traffic. It also shows the traffic counters, which are vital for detecting if any traffic is being processed at all.

Output Interpretation: Look for the state of the SAs. For isakmp sa, MM_ACTIVE indicates a healthy Phase 1. For ipsec sa, you should see active SAs with non-zero packet counts if traffic is flowing. If SAs are flapping (going up and down), or if packet counts are not incrementing, it points to an ongoing issue. The presence and state of these SAs are direct indicators of the tunnel’s operational status.

Example Use Case: After enabling debug crypto isakmp, you would run show crypto isakmp sa to see if a Phase 1 SA is established. If it is, and you then enable debug crypto ipsec, running show crypto ipsec sa will show if Phase 2 has also succeeded. If show crypto ipsec sa shows no active SAs, but show crypto isakmp sa shows an active IKE SA, you know the problem lies in Phase 2 negotiation.

Other Useful Debug Commands and Considerations

While debug crypto isakmp and debug crypto ipsec are the cornerstones, other commands can offer supplementary insights:

debug crypto engine: Provides debugging for the crypto engine, which is responsible for the actual encryption and decryption operations. This can be useful if you suspect issues with the hardware acceleration or the crypto process itself.
debug tunnel: While less common for IPsec, this can sometimes provide insights into GRE over IPsec or other tunnel interfaces that might be involved.
logging enable and show logging: Ensure logging is enabled to capture important security events and errors that might not be immediately visible in the debug output. The ASA logs critical events and errors that can often provide clues about why a tunnel is failing to establish or is behaving unexpectedly.
packet-tracer: This command is a powerful simulation tool that allows you to trace the path a packet would take through the ASA, including VPN processing. It can help determine if traffic is being matched by the crypto map and if it’s being subjected to the correct security policies. This is an excellent non-intrusive way to test your VPN configuration before enabling potentially disruptive debugs.

Disabling Debugs: This is perhaps the most critical step after troubleshooting. To disable all debugs, use the command undebug all. For specific debugs, use no debug crypto isakmp or no debug crypto ipsec. Failure to disable debugs can lead to severe performance degradation on the ASA, potentially causing network outages. Always remember to clear the debug buffer if necessary by using clear log. The output of debug commands is often buffered, and clearing it can help manage console output and free up resources.

Practical Troubleshooting Scenarios with Cisco ASA Debug IPsec Tunnel

Let’s walk through some common scenarios where debug ipsec commands become your best friend.

Scenario 1: Site-to-Site VPN Tunnel Fails to Establish (Phase 1 Issue)

Problem: A new site-to-site VPN connection is not coming online. You can ping the remote peer’s public IP, but the tunnel remains down.

Troubleshooting Steps:

Verify Basic Connectivity: Ensure you can reach the remote peer’s IP address with a simple ping and that there are no intermediate firewalls blocking UDP ports 500 (ISAKMP) and 4500 (IPsec NAT-T).
Check Phase 1 Configuration: Review your crypto isakmp policy, crypto isakmp enable, and tunnel-group configurations on both the local and remote ASAs. Pay close attention to matching ISAKMP policies (encryption, hash, authentication, DH group, lifetime) and the pre-shared key or certificate setup.
Enable Debugs: On the local ASA, enter privileged EXEC mode and enable debug crypto isakmp 127 (or a similar verbosity level). If you’re using IKEv2, you might also consider debug crypto ikev2 255 for more detailed IKEv2 specific output.
Trigger Tunnel Negotiation: Initiate traffic that should traverse the VPN. This could involve pinging a host on the remote network or generating specific traffic patterns that are configured to use the tunnel.
Analyze debug crypto isakmp Output: Look for messages indicating negotiation failures. Common culprits include:
- NO_PROPOSAL_CHOSEN: This is a strong indicator that the ISAKMP policies on the two peers do not match. The ASA will display the proposals it sent and what it received from the peer, allowing you to identify the mismatched parameters.
- AUTHENTICATION_FAILED: This points to an incorrect pre-shared key or an issue with certificate validation. Double-check the PSK on both sides, ensuring it’s identical. If using certificates, verify that they are valid, trusted, and correctly configured.
- INVALID_SYNTAX or other protocol errors: These might indicate malformed IKE packets or a more fundamental communication breakdown.
Run show crypto isakmp sa: After observing the debug output, check the status of the IKE SA. If it’s not in MM_ACTIVE state, Phase 1 has indeed failed.
Adjust Configuration: Based on the debug output, adjust the ISAKMP policies, pre-shared keys, or certificate configurations to achieve a match between the peers. For instance, if NO_PROPOSAL_CHOSEN is seen, you’ll need to align the encryption, hash, DH group, and lifetime settings in your ISAKMP policies.
Disable Debugs: Once you’ve identified and resolved the issue, remember to disable the debugs with undebug all.

Scenario 2: Site-to-Site VPN Tunnel is Up, but No Data Flows (Phase 2 Issue)

Problem: The show crypto isakmp sa command shows an active Phase 1 SA, but traffic is not passing through the tunnel. show crypto ipsec sa shows no active Phase 2 SAs or zero packets exchanged.

Troubleshooting Steps:

Verify Phase 1 is Active: Confirm that show crypto isakmp sa displays an MM_ACTIVE IKE SA. If not, address Phase 1 issues first.
Check Phase 2 Configuration: Review your crypto map entries, transform-set configurations, and access-lists (ACLs) that define the interesting traffic for the VPN. Ensure that the crypto map is applied to the correct interface and that the ACLs on both sides correctly define the source and destination networks for the VPN traffic.
Enable Debugs: On the local ASA, enable debug crypto ipsec 255 (or a suitable level) for detailed IPsec SA negotiation and packet processing output. You might also consider debug crypto map 1 to see how crypto maps are being evaluated.
Trigger Tunnel Negotiation (for Phase 2): Generate traffic that should be encrypted by the IPsec tunnel. This might involve pinging a host on the remote network from a local host, or accessing a resource on the remote network.
Analyze debug crypto ipsec Output: Look for messages indicating Phase 2 negotiation issues or packet processing problems:
- NO_TRANSFORM_MATCH or TRANSFORM_MISMATCH: This clearly indicates that the transform sets (encryption, authentication, PFS settings) configured on the two peers do not match. You need to align these settings in your transform-set configurations.
- No crypto map entry matched: This suggests that the traffic generated is not being identified by any crypto map configured on the ASA. Review your crypto map entries and the associated ACLs to ensure they correctly define the traffic that should be encrypted.
- packet decrypted/encrypted counters not incrementing: If you see these messages but the counters in show crypto ipsec sa are stuck at zero, it implies that while the ASA is attempting to process packets, they are not successfully making it through the tunnel or are being dropped for some reason. This could be due to an ACL denying traffic after it’s been encrypted, or a routing issue on the remote end.
- IPsec SA deleted or IPsec SA not found: These messages can indicate that SAs are not being established or are being prematurely terminated, often due to re-keying failures or policy mismatches.
Run show crypto ipsec sa: Verify the status of the IPsec SAs. Check the encryption/decryption counters. If they are not increasing, it confirms that traffic is not being successfully protected by IPsec.
Adjust Configuration: Based on the debug output, correct the transform sets, crypto map ACLs, or any other Phase 2 parameters that are causing the failure. Ensure consistency in transform set configurations across both VPN endpoints.
Disable Debugs: Once the issue is resolved, disable the debugs using undebug all.

Scenario 3: Intermittent VPN Tunnel Drops

Problem: The IPsec tunnel is established and traffic flows, but it intermittently drops and then re-establishes.

Troubleshooting Steps:

Monitor SA Lifetimes: Check your configured lifetimes for both IKE (Phase 1) and IPsec (Phase 2) SAs. IPsec SAs have an idle timeout and a hard lifetime. If the tunnel is not seeing traffic, the idle timeout can cause it to drop. If the hard lifetime is too short or there are issues with re-keying, it can lead to flapping.
Enable Both Debugs: To capture events across both phases, enable debug crypto isakmp 127 and debug crypto ipsec 255.
Observe Debug Output During Drops: Wait for the tunnel to drop. The debug output should show the process of the SAs being deleted and then re-negotiated. Look for:
- IPsec SA deleted messages: These indicate the tunnel is going down. Note the reason, if provided.
- Re-keying failures in Phase 1 or Phase 2: If the debug shows attempts to re-key but they fail, this is a prime suspect. This could be due to clock drift between the ASAs, temporary network instability, or resource issues on one of the ASAs.
- NAT Traversal (NAT-T) issues: If NAT is involved, intermittent NAT-T re-negotiations can cause tunnel instability. Look for NAT-T related messages in the logs and debug output.
Check for Network Instability: Investigate the underlying network for packet loss, high latency, or jitter, which can interfere with the continuous exchange of keepalives and SA re-keying messages.
Consider Perfect Forward Secrecy (PFS): If PFS is enabled, it requires an additional Diffie-Hellman exchange during Phase 2 re-keys. If the DH exchange is failing or taking too long, it can lead to drops. Try temporarily disabling PFS (if security policies allow) to see if the stability improves.
Adjust SA Lifetimes: If idle timeouts are the cause, consider increasing them or ensuring that there’s a mechanism (like isakmp keepalive) to send dummy traffic to keep the SA active. If hard lifetimes are causing frequent drops, ensure they are set appropriately and that re-keying is succeeding.
Disable Debugs: Remember to turn off debugging once you have gathered sufficient information. undebug all.

Best Practices for Cisco ASA Debug IPsec Tunnel Operations

To maximize the effectiveness of your debugging efforts and minimize impact on your network, adhere to these best practices:

Be Specific: Always try to enable the most specific debug commands relevant to your suspected problem. Avoid debug all unless absolutely necessary and you understand the implications.
Targeted Debugging: If you know the specific tunnel or peer causing issues, use debug crypto isakmp <peer_ip> or debug crypto ipsec <peer_ip> to filter the output.
Understand Output Levels: Familiarize yourself with the numerical levels for debug commands (e.g., debug crypto isakmp 127). Start with lower levels and increase verbosity only if the initial output is insufficient.
Use Logging: Configure your ASA to log critical security events and errors. This provides a historical record that can complement real-time debug output. Send logs to a syslog server for easier analysis.
Disable Debugs Promptly: This cannot be stressed enough. Always disable debugs immediately after troubleshooting using undebug all or no debug <command>. Leaving debugs enabled can severely degrade ASA performance and stability.
Clear Log Buffer: After disabling debugs, consider clearing the log buffer using clear log if it’s become excessively large due to verbose debugging.
Document Your Findings: Keep detailed notes of the debug output, the commands you used, and the changes you made. This documentation is invaluable for future troubleshooting and knowledge sharing.
Use packet-tracer First: Before enabling intrusive debugs, utilize the packet-tracer command to simulate traffic flow and identify potential policy mismatches or routing issues. This non-intrusive tool can often reveal the problem without impacting the ASA’s performance.
Coordinate with Remote Peer: If troubleshooting a site-to-site VPN, work collaboratively with the administrator on the remote end. Many IPsec issues stem from configuration mismatches, and having visibility on both sides is crucial. Share debug output and configuration details to expedite the process.
Understand NAT Implications: Network Address Translation (NAT) can complicate IPsec VPNs. Be aware of how NAT is affecting your VPN traffic, especially for remote access VPNs or site-to-site VPNs traversing NAT devices. NAT-Traversal (NAT-T) is often enabled by default for IKEv1 and IKEv2 to handle this.

By incorporating these best practices into your workflow, you can ensure that your Cisco ASA debug IPsec tunnel troubleshooting is efficient, effective, and maintains the overall health of your network infrastructure. The ability to dissect the intricate dance of IPsec negotiation is a powerful skill, and mastering these debugging techniques will make you an indispensable asset to any network operations team responsible for secure and reliable VPN connectivity. The depth of information provided by Cisco ASA debug commands is unparalleled, offering a clear window into the complex world of IPsec, empowering you to overcome any VPN challenge with confidence and precision.
