CAT C15 Engine Performance: A Deep Dive into the S400 Turbocharger

Oct 31, 2025 by miodeya.com 38 views

Unleash the Power: A Comprehensive Exploration of the CAT C15 Engine and its S400 Turbocharger

For operators and owners of heavy-duty machinery, the CAT C15 engine has long been a benchmark for power, reliability, and enduring performance. This robust powerplant, a staple in demanding sectors like construction, mining, and agriculture, owes a significant portion of its impressive capabilities to its sophisticated turbocharging system. Central to this system, particularly in many high-performance configurations, is the Garrett S400 turbocharger. Understanding the intricacies of this turbocharger, and how it interacts with the CAT C15, is crucial for maximizing engine efficiency, extending service life, and achieving optimal operational outcomes. This article will delve deep into the world of the CAT C15 engine, with a focused examination of the S400 turbocharger, exploring its design, its vital role in engine performance, and the best practices for its maintenance and optimization.

The Heart of the Beast: Understanding the CAT C15 Engine’s Architecture

The CAT C15 engine is an inline-six, four-stroke diesel engine that has earned a formidable reputation for its sheer brute force and unwavering dependability. Its design prioritizes durability and high torque output, making it exceptionally well-suited for applications where sustained power under heavy loads is paramount. The engine displacement, typically around 15.2 liters, allows for ample combustion volume, contributing to its robust power delivery. The CAT C15’s inherent design features, such as its heavy-duty block, forged crankshaft, and advanced fuel injection systems, lay the foundation for its legendary performance. However, to truly unlock its potential and meet the stringent demands of modern heavy-duty work, turbocharging is an indispensable component. Without a turbocharger, the engine’s ability to breathe in sufficient air to burn fuel efficiently would be severely limited, resulting in much lower power output and increased emissions. The CAT C15’s engineering excellence is amplified by the intelligent integration of turbochargers, allowing it to produce more power from a given displacement than naturally aspirated engines. This forced induction method is not just about raw horsepower; it also contributes to improved fuel efficiency by ensuring more complete combustion of the fuel-air mixture. The engine’s design is also highly adaptable, which is why various turbocharger configurations, including the widely adopted S400 series, have found their way into different CAT C15 applications, each tailored to specific performance envelopes and operational requirements.

The robustness of the CAT C15 is not merely a matter of its large displacement; it’s also a testament to its sophisticated internal components and cooling systems. The engine’s cooling system is designed to manage the immense heat generated during operation, especially under heavy load and with the added thermal stress from turbocharging. Similarly, its lubrication system is engineered to ensure that all moving parts are adequately protected, even under extreme pressure and temperature conditions. The fuel injection system, often a sophisticated electronic control module (ECM) driven setup, precisely meters fuel into the cylinders, optimizing the combustion process for both power and efficiency. This precise control is especially critical when a turbocharger is present, as the engine’s air intake is no longer dictated solely by atmospheric pressure but by the boost pressure generated by the turbo. The integration of these systems creates a highly efficient and powerful diesel engine that can withstand the rigors of continuous operation in the most challenging environments. The CAT C15’s reputation for long service intervals and ease of maintenance, despite its complexity, further solidifies its position as a preferred choice for many industries. The engine’s modular design also facilitates repairs and upgrades, allowing for customization to meet evolving operational needs. Therefore, when we discuss the S400 turbocharger’s impact, it’s important to remember that it’s enhancing an already exceptionally well-engineered piece of machinery, complementing its inherent strengths and pushing its performance boundaries even further.

The S400 Turbocharger: A Pillar of Performance Enhancement

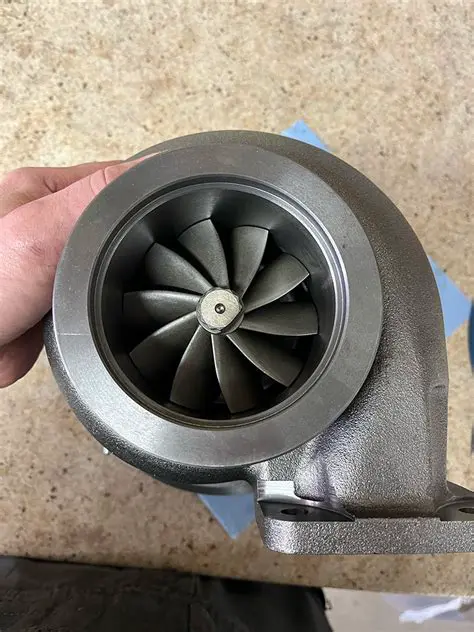

When discussing the Garrett S400 turbocharger in the context of the CAT C15 engine, we are referring to a specific family of turbochargers renowned for their robustness, efficiency, and capability to deliver significant airflow. The S400 series, part of Garrett’s broader line of heavy-duty turbochargers, is characterized by its large frame size and its ability to support high horsepower applications. For the CAT C15, an S400 turbocharger typically translates to increased boost pressure, which directly correlates to more air entering the combustion chambers. More air means more fuel can be efficiently burned, resulting in a substantial increase in power and torque output. This is precisely what is needed for heavy-duty applications that require overcoming steep inclines, pulling massive loads, or operating heavy equipment like excavators and dozers. The design of the S400, with its robust turbine housing and compressor wheel, is engineered to withstand the extreme temperatures and pressures associated with high-performance diesel engines. The turbine wheel, spun by the hot exhaust gases exiting the engine, drives the compressor wheel, which in turn compresses incoming ambient air before it’s fed into the engine’s intake manifold. This compressed air is denser, allowing more oxygen molecules to enter the cylinder, thereby enabling a more powerful and efficient combustion event. The S400’s advanced aerodynamics and material science ensure that it can maintain optimal efficiency across a wide range of engine operating conditions, from idle to full throttle. Its durability is a key selling point; these turbos are built to endure the harsh environments and punishing operating cycles common in industries that rely on CAT C15 engines. The specific variant of the S400 used with a CAT C15 will depend on the application’s requirements, but common features include robust bearing systems designed for longevity under high axial and radial loads, and carefully engineered compressor maps that align with the C15’s operating characteristics to minimize lag and maximize efficiency. The S400’s larger frame size also allows for greater exhaust gas flow, which is critical for higher horsepower applications where the engine’s exhaust volume increases significantly. This ensures that the turbocharger can effectively scavenge exhaust gases, reducing backpressure and further enhancing engine performance. The reliability of the S400 is also a significant factor; a turbocharger failure can lead to catastrophic engine damage and significant downtime, making the selection of a dependable unit like the S400 a critical decision for fleet managers and owner-operators.

The efficiency of a turbocharger is often measured by its ability to compress air without generating excessive heat or experiencing significant energy losses. The S400 turbocharger is designed with advanced aerodynamic principles to optimize this process. The compressor wheel’s blade design and the housing’s volute shape are carefully engineered to maximize airflow and pressure while minimizing turbulence and heat buildup. This leads to cooler intake air temperatures, which are beneficial for engine performance and longevity as cooler air is denser and less prone to detonation. The turbine housing, designed to efficiently capture exhaust energy, is also crucial. Its size and internal geometry are matched to the exhaust gas flow characteristics of the CAT C15 engine to ensure optimal spool-up and sustained boost. A well-matched turbine housing will allow the turbocharger to reach its desired boost pressure quickly, reducing turbo lag – the delay between throttle input and the turbocharger delivering boost. Conversely, an oversized turbine housing can lead to sluggish response, while an undersized one can cause excessive backpressure. The S400 series offers various turbine housing A/R ratios (Area/Radius), allowing for fine-tuning of the turbocharger’s performance to match specific engine builds and operating requirements. Furthermore, the material science employed in the construction of both the turbine and compressor wheels is critical. High-temperature alloys are used for the turbine wheel to withstand the extreme heat of exhaust gases, while advanced aluminum alloys are typically used for the compressor wheel for its lightweight and strength properties. The bearing system, often a journal bearing system in heavy-duty applications like the S400, is designed for exceptional durability and oil lubrication to handle the high rotational speeds and axial/radial loads. This robust construction ensures that the S400 can consistently deliver optimal performance under the demanding conditions that the CAT C15 engine is subjected to, making it a popular and effective choice for performance upgrades and original equipment.

Optimizing the CAT C15 with the S400 Turbocharger: Performance Gains and Considerations

The integration of an S400 turbocharger with a CAT C15 engine is a popular choice for those seeking to elevate performance beyond the stock configuration. This upgrade is not simply a matter of bolting on a larger turbo; it requires a nuanced understanding of how the turbocharger affects various engine parameters. When an S400 is correctly implemented, the primary benefit is a significant increase in airflow, leading to a more potent combustion process. This translates directly to enhanced horsepower and torque, making the CAT C15 more capable of handling demanding tasks with greater ease and efficiency. For applications such as pulling heavy trailers, operating in challenging terrain, or powering large construction equipment, the added grunt provided by an S400-equipped C15 can dramatically improve productivity and reduce cycle times. However, achieving these gains responsibly involves more than just increasing boost pressure. Engine tuning becomes absolutely critical. The engine’s Electronic Control Module (ECM) needs to be recalibrated to manage the increased airflow and fuel delivery appropriately. Without proper tuning, the engine may run too lean (not enough fuel for the air), leading to excessive heat and potential component damage, or too rich (too much fuel), resulting in wasted fuel and increased emissions. Specialized tuning software and expertise are required to optimize fuel maps, injection timing, and boost control strategies. Beyond tuning, other engine components may need consideration. For instance, the intercooler plays a vital role in managing the temperature of the compressed air. As the S400 compresses more air, it also heats it up. A more efficient intercooler is necessary to cool this air before it enters the engine, ensuring denser air for combustion and protecting the engine from heat-related stress. Upgraded exhaust systems might also be beneficial to reduce backpressure and allow the turbocharger to spool more effectively. Similarly, the fuel system may need to be enhanced to deliver the increased fuel volume required to match the boosted airflow. This could involve higher-flow fuel injectors or an upgraded fuel pump. Maintenance is another key consideration for an optimized CAT C15 with an S400 turbo. The increased operating pressures and temperatures demand vigilant attention to oil and filter changes. The turbocharger itself relies heavily on clean, high-quality engine oil for lubrication and cooling. Regular inspections for oil leaks, exhaust leaks, and signs of wear on the turbocharger’s rotating assembly are essential. Proper warm-up and cool-down procedures are also crucial to prolong the life of the turbocharger and prevent thermal shock. Neglecting these aspects can quickly negate the benefits of the performance upgrade and lead to premature component failure. Therefore, a holistic approach that encompasses tuning, component upgrades, and meticulous maintenance is the most effective way to harness the full potential of a CAT C15 engine equipped with an S400 turbocharger.

Furthermore, the durability and longevity of a CAT C15 engine equipped with an S400 turbocharger are directly influenced by the care and attention given to its operating parameters. While the S400 is a robust unit, its performance is inextricably linked to the overall health of the engine. A crucial aspect of optimizing this setup is understanding the EGT (Exhaust Gas Temperature). As boost pressure and fuel delivery increase, EGTs will naturally rise. Excessive EGTs are a primary cause of turbocharger damage and can lead to piston ring damage, valve seat recession, and other internal engine problems. Therefore, monitoring EGTs through an in-cab gauge or by analyzing ECM data is paramount. For most S400 applications on a CAT C15, maintaining EGTs below a certain threshold (typically around 1100-1200°F or 600-650°C under load, though specific recommendations vary) is essential for long-term engine health. The air-to-fuel ratio is another critical parameter that is directly controlled by engine tuning. An S400 turbocharger increases the amount of air available, and the tuning must ensure that an adequate amount of fuel is injected to match this air. Running too lean can lead to a detonation-like condition and extreme heat, while running too rich wastes fuel and can lead to injector coking and other issues. Modern ECMs and sophisticated tuning software allow for precise control of this ratio across the entire operating range of the engine. Cooling system efficiency is also magnified in importance with a turbocharged engine. The S400 compresses air, which, as mentioned, heats it up. The intercooler’s job is to reduce this temperature before the air enters the cylinders. If the intercooler becomes inefficient due to blockage or leaks, intake air temperatures will rise, reducing power and increasing the risk of engine damage. Similarly, the engine’s main radiator and cooling fan must be up to the task of dissipating the additional heat generated by the more powerful combustion process. Maintenance of the intake and exhaust systems is also vital. Clogged air filters will starve the turbocharger of air, reducing its efficiency and potentially causing damage. Leaks in the exhaust manifold or piping upstream of the turbo can reduce the energy available to spin the turbine, leading to poor performance and increased smoke. Conversely, leaks downstream of the turbocharger can allow unmetered air into the system, affecting fuel calculations and emissions. Therefore, a comprehensive approach to maintaining all aspects of the engine and its supporting systems is the most effective strategy for maximizing the benefits of an S400 turbocharger on a CAT C15.

Maintenance and Longevity: Ensuring Your CAT C15 and S400 Perform for Years

For any heavy-duty engine, and especially one enhanced with a performance turbocharger like the Garrett S400, a proactive and meticulous maintenance schedule is not just recommended; it’s absolutely essential for ensuring optimal performance and longevity. The CAT C15 engine, renowned for its durability, can achieve impressive service hours when treated with the right care. The S400 turbocharger, while robust, operates under extreme conditions – high rotational speeds, intense heat from exhaust gases, and significant pressure from compressed intake air. Therefore, the maintenance of the lubrication system is paramount. Engine oil and filters must be changed at the manufacturer’s recommended intervals, using high-quality oils that meet the specific viscosity and API service classifications required by the CAT C15. Clean engine oil is the lifeblood of a turbocharger, providing essential lubrication and cooling to its high-speed rotating components. Any contaminants in the oil, such as dirt or metal shavings, can quickly cause abrasive wear on the turbocharger’s bearings and shaft, leading to premature failure. Regular oil analysis can be an invaluable tool, providing early warnings of potential issues by detecting abnormal wear metals or other contaminants. Beyond the oil, the air filtration system plays a critical role. A clogged air filter restricts airflow to the turbocharger, forcing it to work harder and potentially leading to reduced performance and increased stress on the compressor wheel. Inspecting and replacing air filters according to the operating environment and manufacturer recommendations is crucial. Similarly, the exhaust system should be regularly inspected for leaks, especially around the turbocharger’s mounting points and exhaust manifold. Exhaust leaks upstream of the turbocharger can reduce the exhaust gas energy available to spin the turbine, hindering performance and increasing turbo lag. Leaks downstream of the turbocharger can affect the accuracy of air-fuel ratio calculations and emissions control. Cooling system maintenance is also a vital aspect. The S400 turbocharger, by compressing air, generates significant heat. An efficient intercooler and a well-functioning engine cooling system are necessary to dissipate this heat effectively. Overheating can lead to a cascade of problems, including reduced engine power, increased wear on engine components, and potential damage to the turbocharger itself. Checking coolant levels, inspecting hoses and belts for wear, and ensuring the radiator is clean and free of obstructions are all part of essential cooling system upkeep. Turbocharger specific checks should also be incorporated into the regular maintenance routine. This includes listening for unusual noises (such as grinding or whining) coming from the turbocharger, which can indicate bearing issues. Inspecting for oil leaks around the turbocharger seals is also important. Proper operating procedures are just as critical as scheduled maintenance. Allowing the engine to warm up properly before applying heavy loads helps to ensure that the oil is fully circulated and at operating temperature, providing adequate lubrication to the turbocharger. Similarly, allowing the engine to cool down for a few minutes after a hard run before shutting it off helps to prevent heat soak and thermal stress on the turbocharger’s components. By adhering to these diligent maintenance practices, owners and operators can significantly extend the service life of both their CAT C15 engine and its S400 turbocharger, ensuring reliable and powerful performance for years to come and minimizing costly downtime.

Moreover, the periodic inspection of the turbocharger’s rotating assembly is a proactive measure that can prevent catastrophic failures. While journal bearing turbos are known for their durability, they are not indestructible. By carefully examining the compressor wheel for any signs of damage, such as bent or chipped blades, and by checking for excessive play in the shaft, mechanics can identify potential issues before they become severe. This might involve removing the intake and exhaust plumbing to get a clear view. The wastegate actuator is another component that warrants attention. If the wastegate is stuck open, boost pressure will be significantly reduced, impacting performance. If it’s stuck closed, excessive boost can build, potentially over-stressing the engine and turbocharger. Ensuring the wastegate operates freely and responds correctly to vacuum or electronic signals is crucial. For CAT C15 engines equipped with variable geometry turbochargers (VGTs), although the S400 is typically a fixed geometry unit, many C15 applications utilize VGTs, and their maintenance is even more critical. For those with fixed geometry S400s, the focus remains on the robustness of the unit itself. Component cleanliness cannot be overstated. During any maintenance that involves disassembling parts of the intake or exhaust system connected to the turbocharger, ensuring that no debris enters the turbocharger housing is vital. Even small particles can cause significant damage to the fine tolerances of the compressor and turbine wheels. Regular diagnostic checks using Caterpillar’s proprietary diagnostic tools can also provide valuable insights into the turbocharger’s performance and the overall health of the engine. These tools can monitor boost pressure readings, EGTs, and other relevant parameters, allowing for early detection of anomalies. Finally, choosing reputable parts and service providers is essential. When replacement parts are needed, opting for genuine OEM or high-quality aftermarket components is crucial. Similarly, entrusting complex maintenance and repair work to experienced technicians who specialize in CAT engines and turbochargers will ensure that the work is performed correctly, further safeguarding the investment in the engine and its turbocharging system. By integrating these advanced maintenance and diagnostic strategies, the lifespan and performance reliability of a CAT C15 with an S400 turbocharger can be maximized, ensuring it continues to be a powerhouse for demanding applications.

Conclusion: The Synergistic Power of CAT C15 and S400 Turbo

The CAT C15 engine, a legend in the heavy-duty sector, achieves its exceptional power and reliability through a combination of robust engineering and advanced technological integration. At the forefront of its performance enhancement is the Garrett S400 turbocharger, a component that, when correctly applied and maintained, unlocks significant gains in horsepower, torque, and overall operational efficiency. The synergy between these two powerhouses is undeniable, transforming the CAT C15 into an even more formidable force capable of tackling the most demanding tasks across industries. Understanding the intricate workings of the S400, its role in forcing more air into the combustion chambers, and the resulting increase in power, is key for any operator or owner seeking to maximize their machinery’s potential. However, this pursuit of enhanced performance must be balanced with a deep commitment to proper engine tuning, comprehensive maintenance, and vigilant monitoring of critical operating parameters such as exhaust gas temperatures and boost pressures. Neglecting these aspects can quickly lead to diminished performance, increased wear, and costly repairs. By embracing best practices in maintenance, utilizing advanced diagnostic tools, and ensuring all supporting systems are in optimal condition, the longevity and unwavering performance of a CAT C15 equipped with an S400 turbocharger can be assured. The CAT C15 and its S400 turbocharger represent a peak in diesel engine technology, a testament to engineering prowess designed to deliver unparalleled power and durability when it matters most.
