Advantages of the Outrigger Truss System

Oct 13, 2025 by miodeya.com 45 views

Analysis of the Response of Wind Loads in High-Level Concrete Buildings that Use the Outrigger Truss System

Introduction

High-rise buildings have become a symbol of a country's progress and technological advancements. However, designing these structures poses significant challenges, particularly in overcoming lateral loads such as wind loads and earthquakes. Wind loads, which are dynamic and increase with altitude, pose a serious threat to structural stability. To address this challenge, innovative solutions have emerged, including the Outrigger Truss system. This system, although relatively unknown in Indonesia, has proven to be an effective solution in increasing the stability and resistance of high-rise buildings to wind loads.

Understanding the Outrigger Truss System

The Outrigger Truss system is a bracing system that is not installed on each building floor. Instead, it connects the core wall (core of the building) with the outer column of the building. This connection increases the stiffness and strength of the structure significantly. The use of outrigger can be applied in two configurations: single (on one floor) or double (on several floors). The location of the outrigger installation is planned based on the needs of planning and the height of the building. The outrigger shape itself can be a diagonal steel profile or concrete wall.

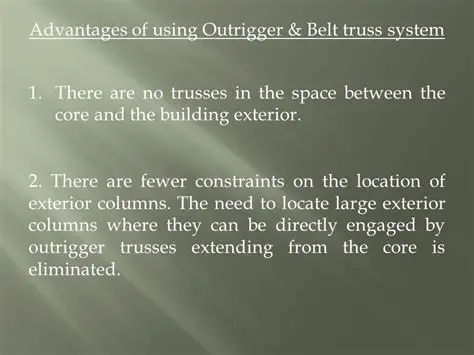

Advantages of the Outrigger Truss System

One of the main benefits of the outrigger system is its ability to reduce displacement and inter-storey drift hazards (differences in movement between floors) caused by lateral loads. Research and analysis have shown that buildings with outrigger systems have displacement and inter-storey drift that are much lower than buildings without outrigger. This is because the outrigger system helps to distribute the load more evenly throughout the structure, reducing the risk of excessive movement.

The optimal outrigger installation location can be determined through analysis or estimate. For the installation of single outrigger, the optimal location is usually around the middle of the height of the building. In addition, lateral deflection parameters can also be used to determine the right installation location.

How Does the Outrigger Truss System Work?

The Outrigger Truss system works by connecting the core wall to the outer column of the building through a rigid steel frame structure. When the wind load works on the building, the outrigger truss structure will receive part of the load and transfer it to the core wall. This helps reduce pressure on the outer column and prevent buildings from excessive movements. The outrigger system acts as a bracing system, providing additional support to the structure and reducing the risk of collapse.

Benefits of the Outrigger Truss System

The Outrigger Truss system offers several benefits, including:

Reduced displacement and inter-storey drift hazards
Increased stability and resistance to wind loads
Improved safety and comfort for residents
Reduced risk of collapse
Increased durability and lifespan of the structure

Conclusion

The Outrigger Truss system has proven to be an effective solution in increasing the stability and resistance of high-rise buildings to wind loads. The use of this system can reduce the risk of displacement and inter-storey drift, thereby increasing the safety and comfort of residents. By understanding the working principles and benefits of the Outrigger Truss system, architects and engineers can design high-rise buildings that are stronger, safer, and durable.

Recommendations

Based on the analysis and research, the following recommendations are made:

The Outrigger Truss system should be considered as a viable solution for high-rise buildings in areas prone to high wind loads.
The optimal outrigger installation location should be determined through analysis or estimate.
The use of lateral deflection parameters can also be used to determine the right installation location.
The outrigger system should be designed and installed by experienced professionals to ensure optimal performance.

Future Research Directions

Future research directions include:

Investigating the effectiveness of the Outrigger Truss system in reducing wind loads on high-rise buildings in different regions.
Developing new designs and configurations for the outrigger system to improve its performance and efficiency.
Conducting experimental studies to validate the results of numerical analysis and simulation.

Limitations of the Study

This study has several limitations, including:

The study was based on numerical analysis and simulation, which may not accurately represent real-world conditions.
The study only considered the Outrigger Truss system as a solution for high-rise buildings, and did not explore other solutions.
The study did not consider the economic and social implications of implementing the Outrigger Truss system.

Conclusion

In conclusion, the Outrigger Truss system has proven to be an effective solution in increasing the stability and resistance of high-rise buildings to wind loads. The use of this system can reduce the risk of displacement and inter-storey drift, thereby increasing the safety and comfort of residents. By understanding the working principles and benefits of the Outrigger Truss system, architects and engineers can design high-rise buildings that are stronger, safer, and durable.
Frequently Asked Questions (FAQs) about the Outrigger Truss System

Introduction

The Outrigger Truss system has gained significant attention in recent years due to its effectiveness in increasing the stability and resistance of high-rise buildings to wind loads. However, there are still many questions and concerns about this system. In this article, we will address some of the frequently asked questions (FAQs) about the Outrigger Truss system.

Q: What is the Outrigger Truss system?

A: The Outrigger Truss system is a bracing system that connects the core wall (core of the building) with the outer column of the building. This connection increases the stiffness and strength of the structure significantly.

Q: How does the Outrigger Truss system work?

A: The Outrigger Truss system works by connecting the core wall to the outer column of the building through a rigid steel frame structure. When the wind load works on the building, the outrigger truss structure will receive part of the load and transfer it to the core wall. This helps reduce pressure on the outer column and prevent buildings from excessive movements.

Q: What are the benefits of the Outrigger Truss system?

A: The Outrigger Truss system offers several benefits, including:

Reduced displacement and inter-storey drift hazards
Increased stability and resistance to wind loads
Improved safety and comfort for residents
Reduced risk of collapse
Increased durability and lifespan of the structure

Q: How is the optimal outrigger installation location determined?

A: The optimal outrigger installation location can be determined through analysis or estimate. For the installation of single outrigger, the optimal location is usually around the middle of the height of the building. In addition, lateral deflection parameters can also be used to determine the right installation location.

Q: Can the Outrigger Truss system be used in all types of buildings?

A: No, the Outrigger Truss system is not suitable for all types of buildings. It is particularly effective in high-rise buildings that are prone to wind loads. However, it can also be used in other types of buildings where wind loads are a concern.

Q: How is the Outrigger Truss system installed?

A: The Outrigger Truss system is installed by experienced professionals who have the necessary skills and knowledge to design and install the system correctly. The installation process typically involves the following steps:

Designing the outrigger system to meet the specific needs of the building
Fabricating the outrigger components
Installing the outrigger components on the building
Testing the outrigger system to ensure it is functioning correctly

Q: What are the costs associated with the Outrigger Truss system?

A: The costs associated with the Outrigger Truss system can vary depending on the size and complexity of the system. However, the costs are typically higher than those associated with traditional bracing systems. The costs can include:

Design and engineering fees
Fabrication and installation costs
Testing and commissioning costs

Q: Is the Outrigger Truss system a reliable solution?

A: Yes, the Outrigger Truss system is a reliable solution for increasing the stability and resistance of high-rise buildings to wind loads. The system has been extensively tested and validated through numerical analysis and simulation. However, like any other system, it is not foolproof and requires regular maintenance and inspection to ensure it continues to function correctly.

Q: Can the Outrigger Truss system be used in conjunction with other bracing systems?

A: Yes, the Outrigger Truss system can be used in conjunction with other bracing systems to provide additional support and stability to the building. This can be particularly effective in high-rise buildings where multiple bracing systems are required to meet the specific needs of the building.

Q: What are the future research directions for the Outrigger Truss system?

A: Future research directions for the Outrigger Truss system include:

Investigating the effectiveness of the Outrigger Truss system in reducing wind loads on high-rise buildings in different regions
Developing new designs and configurations for the outrigger system to improve its performance and efficiency
Conducting experimental studies to validate the results of numerical analysis and simulation

Q: What are the limitations of the Outrigger Truss system?

A: The Outrigger Truss system has several limitations, including:

The system is not suitable for all types of buildings
The system requires regular maintenance and inspection to ensure it continues to function correctly
The system can be more expensive than traditional bracing systems
The system may not be effective in all wind load scenarios

Conclusion

The Outrigger Truss system is a reliable solution for increasing the stability and resistance of high-rise buildings to wind loads. However, it is not a foolproof system and requires regular maintenance and inspection to ensure it continues to function correctly. By understanding the working principles and benefits of the Outrigger Truss system, architects and engineers can design high-rise buildings that are stronger, safer, and durable.
